1SPE007714F0131
Part Number: 1SPE007714F0131
Product Information
Extended Description

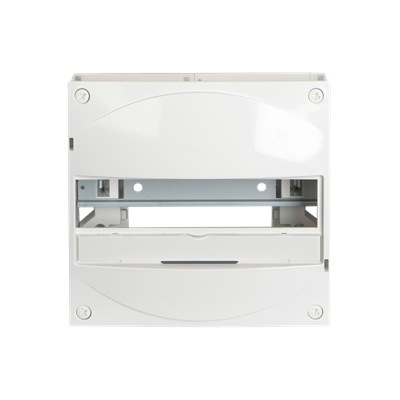

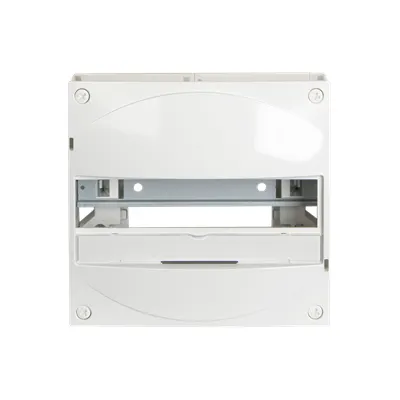

1SPE007714F0131 ABB: Gale'O consumer unit 1 x 13 modules;Gale'O consumer unit 1 x 13 modules
Number of Rows
1
Closure Type
Snap Function
Cover Plate Type
Optional
Mounting Type
Cable duct
Door Type
Single
Enclosure Material
Thermoplastic
Housing Material
Plastic
Cover Style
with Notch
DIN Place Units
13
RAL Number
RAL 9010 - Pure White
Color
White
RoHS Information
EU Declaration of Conformity Wall Mounting Consumer Unit Galeò
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20221015
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Ambient Air Temperature
Around the Enclosure -10 … +60 °C
Degree of Protection
IP41
Protection Class
Isolated (Class II)
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
13
Product Net Width
250 mm
Product Net Height
238 mm
Product Net Depth / Length
111 mm
Product Net Weight
0.692 kg
Built-In Depth (t2)
89 mm
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.992 kg
Declaration of Conformity - CE
EU Declaration of Conformity Wall Mounting Consumer Unit Galeò
Instructions and Manuals
Manual Gale’O
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
Not applicable
