1SPE007714F0706
Part Number: 1SPE007714F0706
Product Information
Extended Description

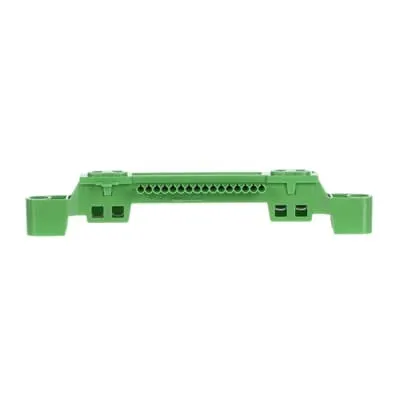

1SPE007714F0706 ABB: Terminal blocks earth;Terminal blocks earth
Rated Voltage (Ur)
400 V
Rated Current (In)
100 A
Mounting Type
Direct mounting
Terminal Connection Type
Top
Insulation Material
Thermoplastic
Color
Green
Rated Cross-Section
1 - Solid-Core 1...25 mm² | 2 - Fine-Strand with Cable End Sleeve 1...25 mm² | 3 - Fine-Strand without Cable End Sleeve 1...25 mm² | 4 - Multi-Wired 1...25 mm²
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
d4500a1f-a581-4090-888d-3b806b5931f5 Netherlands (NL)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
240 mm
Product Net Height
42 mm
Product Net Depth / Length
24 mm
Product Net Weight
100 g
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
112 g
Declaration of Conformity - CE
1SPE007714F0706
ETIM 8
EC001284 - Single- and multi-pole terminal strip
ETIM 9
EC001284 - Single- and multi-pole terminal strip
eClass
V11.0 : 27141106
Object Classification Code
X
