1SPE007714F0712
Part Number: 1SPE007714F0712
Product Information
Extended Description

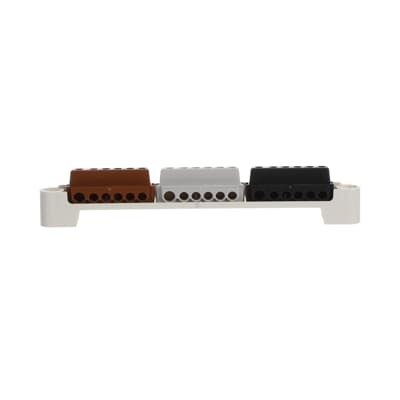

1SPE007714F0712 ABB: 3 Phase bridge equipped;3 Phase bridge equipped
Rated Voltage (Ur)
400 V
Rated Current (In)
100 A
Accessory Type
terminals
Mounting Type
Direct mounting
Terminal Connection Type
Phase-Terminal
Insulation Material
Thermoplastic
DIN Place Units
13
Color
Multi colour
Rated Cross-Section
1 - Solid-Core 1...25 mm² | 2 - Fine-Strand with Cable End Sleeve 1...25 mm² | 3 - Fine-Strand without Cable End Sleeve 1...25 mm² | 4 - Multi-Wired 1...25 mm²
Terminal Type
Screw Terminals
RoHS Information
EU Declaration of Conformity Terminals - Screw-Type
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240626
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
7279cd69-2eae-4e57-87a2-6934432a24e8 Netherlands (NL)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
240 mm
Product Net Height
29 mm
Product Net Depth / Length
31 mm
Product Net Weight
400 g
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
448 g
Declaration of Conformity - CE
1SPE007714F0712
ETIM 8
EC001284 - Single- and multi-pole terminal strip
ETIM 9
EC001284 - Single- and multi-pole terminal strip
eClass
V11.0 : 27141106
Object Classification Code
Not applicable
