1SPE007715F0745
Part Number: 1SPE007715F0745
Product Information
Extended Description

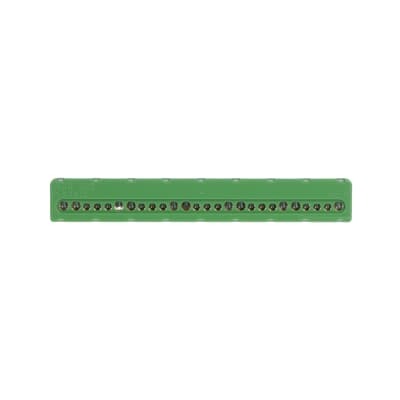

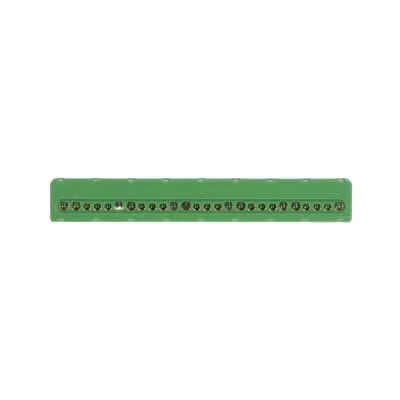

1SPE007715F0745 ABB: Terminal block PE 11x16mm²+15x6mm²;Terminal block PE 11x16mm²+15x6mm²
Suitable for Product Class
MISTRAL65;MISTRAL41F; MISTRAL41W
Rated Voltage (Ur)
400 V
Rated Current (In)
100 A
Number of Line Terminals
11
Accessory Type
terminals
Mounting Type
Direct mounting
Terminal Connection Type
PE-Terminal
Insulation Material
Thermoplastic
Color
Green
Rated Cross-Section
1 - Solid-Core 6...16 mm² | 2 - Fine-Strand with Cable End Sleeve 6...16 mm² | 3 - Fine-Strand without Cable End Sleeve 6...16 mm² | 4 - Multi-Wired 6...16 mm²
Terminal Type
Screw Terminals
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
181 mm
Product Net Height
24 mm
Product Net Depth / Length
24 mm
Product Net Weight
0.1061 kg
Package Level 1 Units
box 5 piece
Package Level 1 Gross Weight
0.5305 kg
Declaration of Conformity - CE
1SPE007715F0745
Instructions and Manuals
System pro E comfort MISTRAL screw terminal
Data Sheet, Technical Information
1SLC801013D0201
ETIM 8
EC001284 - Single- and multi-pole terminal strip
ETIM 9
EC001284 - Single- and multi-pole terminal strip
eClass
V11.0 : 27141106
Object Classification Code
X
