1SPE007717F0620
Part Number: 1SPE007717F0620
Product Information
Extended Description

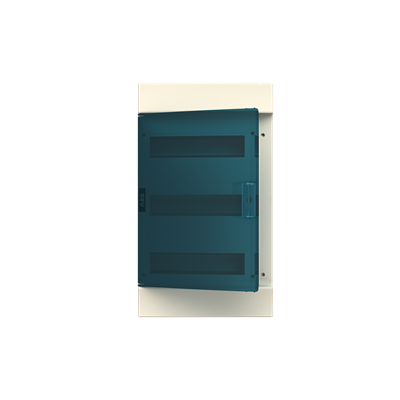

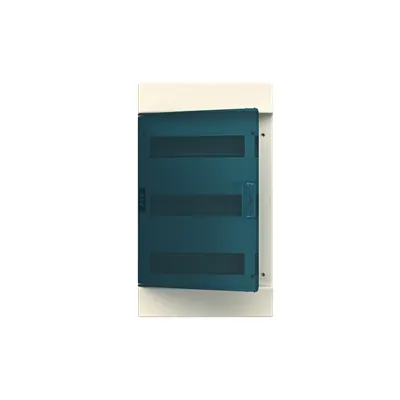

1SPE007717F0620 ABB: Consumer unit, IP 41, 3x12 -modules with transparent door
Power Loss
36.8 W
Number of Line Terminals
0
Number of Rows
3
Closure Type
Snap Function
Configuration Type
Assembled with DIN-rail
Cover Plate Type
Door
Mounting Type
Surface mounting
Door Type
Single
Door Surface Finishing
Transparent
Enclosure Material
Thermoplastic
Housing Material
Plastic
Transparent Door
Yes
Cover Style
with Notch
DIN Place Units
36
RAL Number
RAL 9016 - Traffic White
Color
White
Terminal Type
No Terminals
RoHS Information
EU Declaration of Conformity MISTRAL41W GWT 650°C
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20221015
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Ambient Air Temperature
Around the Enclosure -10 … +60 °C
Degree of Protection
IP41
Protection Class
Isolated (Class II)
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
12
Product Net Width
297 mm
Product Net Height
512 mm
Product Net Depth / Length
119 mm
Product Net Weight
1.915 kg
Built-In Depth (t2)
74 mm
Package Level 1 Units
box 2 piece
Package Level 1 Gross Weight
3.829 kg
Declaration of Conformity - CE
EU Declaration of Conformity MISTRAL41W GWT 650°C
Instructions and Manuals
System pro E comfort MISTRAL41 W Instruction Manual
Data Sheet, Technical Information
1SLC801013D0201
Building Information Modeling – BIM
ABB-BIM MISTRAL 41 W
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
Not applicable
