1SPE007717F1021
Part Number: 1SPE007717F1021
Product Information
Extended Description

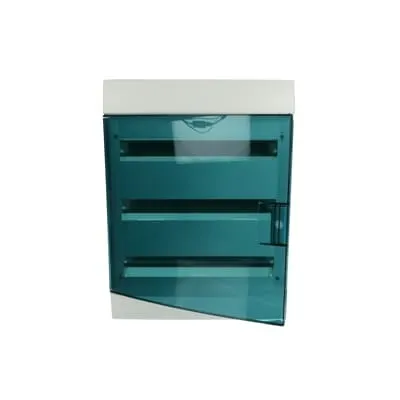

1SPE007717F1021 ABB: Consumer unit, IP 41, 3x18 -modules with terminals with transparent door
Power Loss
45.2 W
Number of Line Terminals
0
Number of Rows
3
Closure Type
Snap Function
Configuration Type
Assembled with DIN-rail
Cover Plate Type
Door
Mounting Type
Surface mounting
Door Type
Single
Door Surface Finishing
Transparent
Enclosure Material
Thermoplastic
Housing Material
Plastic
Transparent Door
Yes
Cover Style
with Notch
DIN Place Units
54
RAL Number
RAL 9016 - Traffic White
Color
White
Terminal Type
Screw Terminals
RoHS Information
9AKK108470A6164
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20241218
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Ambient Air Temperature
Around the Enclosure -10 … +60 °C
Degree of Protection
IP41
Protection Class
Isolated (Class II)
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
18
Product Net Width
387 mm
Product Net Height
512 mm
Product Net Depth / Length
119 mm
Product Net Weight
2.396 kg
Built-In Depth (t2)
74 mm
Package Level 1 Units
box 2 piece
Package Level 1 Gross Weight
4.791 kg
Declaration of Conformity - CE
9AKK108470A6164
Instructions and Manuals
System pro E comfort MISTRAL41 W Instruction Manual
Data Sheet, Technical Information
1SLC801013D0201
Building Information Modeling – BIM
ABB-BIM MISTRAL 41 W
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
Not applicable
