1SPF002001F5214
Part Number: 1SPF002001F5214
Product Information
Extended Description

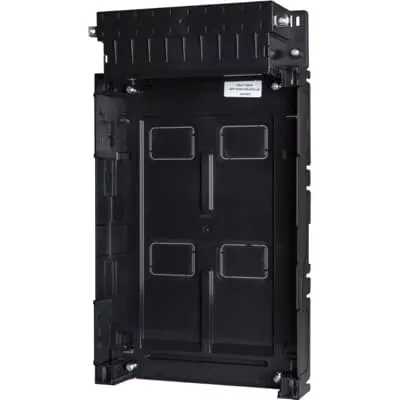

1SPF002001F5214 ABB: Small distribution board Hafonorm Base 220x330 + input piece
ABB EcoSolutions
Yes
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 93.9 %
Sustainable Material Content in Product (wt. %)
Mechanically Recycled Polymer - 90.9 % | Recycled Metal - 9.1 %
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Sustainable Material Content in Packaging (wt. %)
FSC 100% Cardboard - 100 %
Extended Product Lifetime
Product Durability | Product Modularity
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
EPD_unequipped installation cabinets without busboards
Number of Flange Openings
6
Number of Conduit Inlets
0
Number of Rows
2
Cover Plate Type
None
Mounting Type
Surface mounting
Surface Finishing
Untreated
Housing Material
Plastic
RAL Number
RAL 9017 - Traffic Black
Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP20
Protection Class
Grounded (Class I)
Width in Number of Modular Spacings
12
Product Net Width
330.000 mm
Product Net Height
220.000 mm
Product Net Depth / Length
330.000 mm
Product Net Weight
0.6 kg
Built-In Depth (t2)
75 mm
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.7677 kg
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142408
