1SPF006905F0758
Part Number: 1SPF006905F0758
Product Information
Extended Description

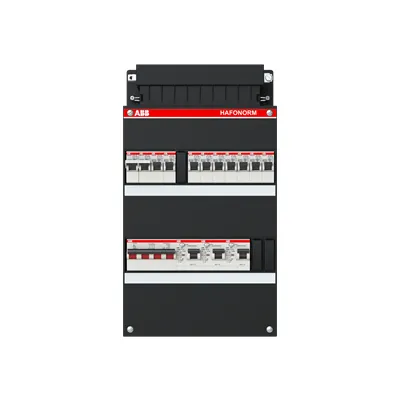

1SPF006905F0758 ABB: Small distribution board equipped Hafonorm Consumer unit Main switch 3x 40A, 3x RCD 9 groups + 2-pole cooking group
Tripping Characteristic
B
Rated Current (In)
Main Switch 40 A
Rated Short-Circuit Capacity
(230 V) 6 kA
Number of Poles Main Switch
4
Number of Outputs
10
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
0 | 30mA 3 | 300mA 0
Number of Miniature Circuit Breakers (MCBs)
Single-Phase 9 | Three-Phase 0
Number of Phases in Cooking Group
1
Number of Rows
2
Closure Type
Snap Function
Cover Plate Type
Cover
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Plastic
RAL Number
Similar to RAL 9005
Color
Black
RoHS Information
EU Declaration of Conformity / Distribution boards (domestic use) HAFONORM
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
a357477a-8a1c-4602-b21e-9f2948e93963 Netherlands (NL)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
220 mm
Product Net Height
395 mm
Product Net Depth / Length
110 mm
Product Net Weight
2.4 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
2.63405 kg
Declaration of Conformity - CE
EU Declaration of Conformity / Distribution boards (domestic use) HAFONORM
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
