1SPF006906F0120
Part Number: 1SPF006906F0120
Product Information
Extended Description

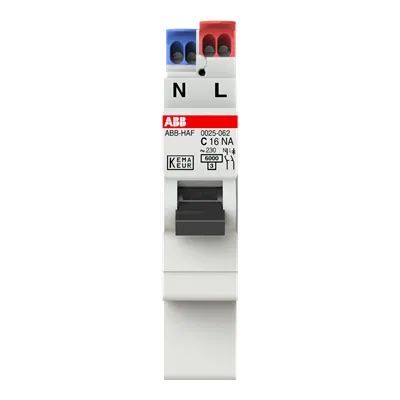

1SPF006906F0120 ABB: Miniature circuit breaker (MCB) Hafonorm MCB Flexomaat screwless C Char. 16A
Tripping Characteristic
C
Rated Voltage (Ur)
230 V
Rated Operational Voltage
acc. to IEC 60947-2 230 V
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)
4 kV
Input Voltage Type
AC
Rated Current (In)
16 A
Rated Short-Circuit Capacity
(400 V) 6 kA | (230 V) 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(230 V) 6 kA | (400 V) 6 kA
Rated Conditional Short-Circuit Current (Inc)
(230 V) 6 kA | (400 V) 6 kA
Frequency (f)
50...50 Hz
Rated Frequency (f)
50...50 Hz
Energy Limiting Class
3
Number of Protected Poles
1
Number of Poles
2P
Overvoltage Category
III
Release Type
C
Accessories Available
No
Number of Batteries
0
Connecting Capacity
Flexible 0 ... 10 mm² | Rigid 0 ... 16 mm²
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Ambient Air Temperature
Operation -25...55 °C
Degree of Protection
IP2X
Pollution Degree
2
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
1
Product Net Width
85.000 mm
Product Net Height
80.000 mm
Product Net Depth / Length
85.000 mm
Product Net Weight
0.102 kg
Built-In Depth (t2)
68 mm
Package Level 1 Units
bag 10 piece
Package Level 1 Gross Weight
1.08 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000042 - Miniature circuit breaker (MCB)
ETIM 9
EC000042 - Miniature circuit breaker (MCB)
eClass
V11.0 : 27141901
Object Classification Code
F
