1SPF006906F0311
Part Number: 1SPF006906F0311
Product Information
Extended Description

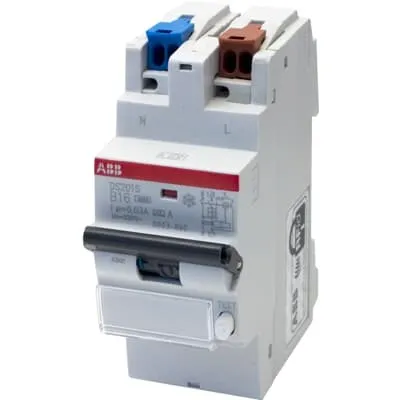

1SPF006906F0311 ABB: Earth leakage circuit breaker Hafonorm RCBO Comfomaat B16/30mA screwless
Tripping Characteristic
B
Rated Voltage (Ur)
230 V
Rated Operational Voltage
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui)
500 V
Rated Impulse Withstand Voltage (Uimp)
4 kV
Input Voltage Type
AC
Rated Current (In)
16 A
Rated Short-Circuit Capacity
6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
6 kA
Rated Conditional Short-Circuit Current (Inc)
6 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
6 kA
Maximum Surge Current
250 kA
Leakage Current Type
A
Frequency (f)
50/60 Hz
Energy Limiting Class
3
Number of Protected Poles
1
Number of Poles
2P
Earthing Switch Type
Undelayed
Release Type
B
Number of Batteries
0
Rated Cross-Section
1 - Solid-Core 25...25 mm² | 4 - Multi-Wired 25...25 mm²
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Ambient Air Temperature
Operation -25...55 °C
Degree of Protection
IP20
Pollution Degree
2
Environmental Information
Declaration regarding the REACH - Regulation
Short-Circuit Current Rating (SCCR)
0.03 A
Width in Number of Modular Spacings
2
Product Net Width
85.000 mm
Product Net Height
36.000 mm
Product Net Depth / Length
190.000 mm
Product Net Weight
0.3 kg
Built-In Depth (t2)
73 mm
Package Level 1 Units
box 5 piece
Package Level 1 Gross Weight
1.5571 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000905 - Earth leakage circuit breaker
ETIM 9
EC000905 - Earth leakage circuit breaker
eClass
V11.0 : 27142207
Object Classification Code
Q
