1SPF006906F0430
Part Number: 1SPF006906F0430
Product Information
Extended Description

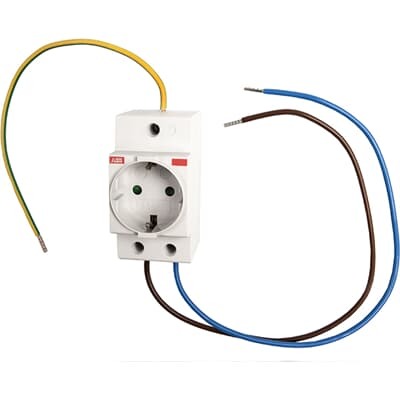

1SPF006906F0430 ABB: Socket outlet for distribution board Hafonorm DIN-rail contactstop Protective earth pre-wired
Rated Voltage (Ur)
230 V
Input Voltage Type
AC
Rated Current (In)
16 A
Model Number
Socket outlet CEE 7/3 (type F)
Number of Active Pin Terminals
2
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP20
Width in Number of Modular Spacings
2,5
Product Net Width
40.000 mm
Product Net Height
55.000 mm
Product Net Depth / Length
95.000 mm
Product Net Weight
0.195 kg
Built-In Depth (t2)
45 mm
Package Level 1 Units
bag 1 piece
Package Level 1 Gross Weight
0.255 kg
ETIM 8
EC001663 - Socket outlet for distribution board
ETIM 9
EC001663 - Socket outlet for distribution board
eClass
V11.0 : 27142305
