1SPF006909F2723
Part Number: 1SPF006909F2723
Product Information
Extended Description

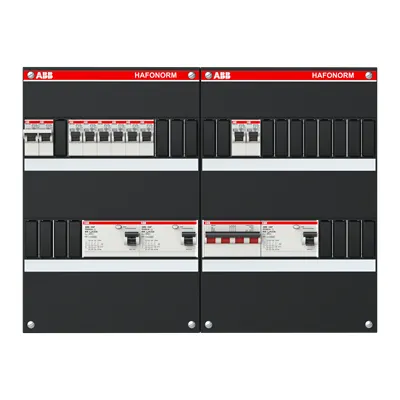

1SPF006909F2723 ABB: Small distribution board equipped Hafonorm 3-phase, main switch 40A 4P 3 RCCB 40A 4P 30 mA 8 MCB B16 1P+N, 1 Cookinggroup
Tripping Characteristic
B
Rated Current (In)
Main Switch 40 A
Rated Short-Circuit Capacity
(230 V) 6 kA
Number of Poles Main Switch
4
Number of Outputs
9
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
0 | 30mA 3 | 300mA 0
Number of Miniature Circuit Breakers (MCBs)
Single-Phase 8 | Three-Phase 0
Number of Phases in Cooking Group
0
Number of Rows
2
Closure Type
Snap Function
Cover Plate Type
Cover
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Plastic
RAL Number
Similar to RAL 9005
Color
Black
RoHS Information
EU Declaration of Conformity / Distribution boards (domestic use) HAFONORM
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
6578fc35-2730-4ded-a197-94342eb03b39 Netherlands (NL)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP2XC
Width in Number of Modular Spacings
48
Product Net Width
440 mm
Product Net Height
395 mm
Product Net Depth / Length
110 mm
Product Net Weight
5.396 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
5.962 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
eClass
V11.0 : 27142415
Object Classification Code
Not applicable
