1SPF006909F2900
Part Number: 1SPF006909F2900
Product Information
Extended Description

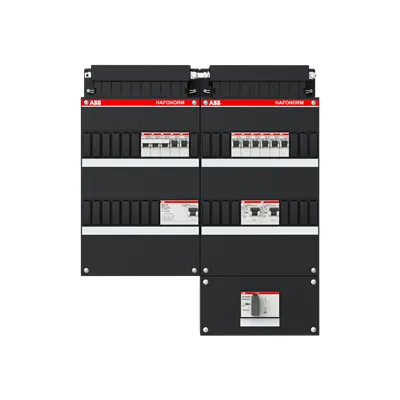

1SPF006909F2900 ABB: Small distribution board equipped Hafonorm MainSw.40A,3xRCD30mA,3+3+2ways+K,3Ph+N Consumer Unit
Tripping Characteristic
B
Rated Current (In)
Main Switch 40 A
Rated Short-Circuit Capacity
(230 V) 6 kA
Number of Poles Main Switch
4
Number of Outputs
9
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
0 | 30mA 3 | 300mA 0
Number of Miniature Circuit Breakers (MCBs)
Single-Phase 8 | Three-Phase 0
Number of Phases in Cooking Group
3
Number of Rows
3
Closure Type
Snap Function
Cover Plate Type
Cover
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Plastic
RAL Number
Similar to RAL 9005
Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
bb3e5064-62f2-4925-adca-2bc7c075c002 Netherlands (NL)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
48
Product Net Width
440 mm
Product Net Height
505 mm
Product Net Depth / Length
110 mm
Product Net Weight
3.704 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
4.42 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
eClass
V11.0 : 27142415
