1SPF006911F0133
Part Number: 1SPF006911F0133
Product Information
Extended Description

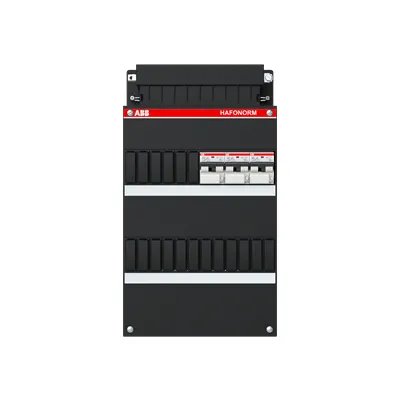

1SPF006911F0133 ABB: Small distribution board equipped Hafonorm 3x RCBO 16A/30mA, 1Ph+N Consumer Unit
Tripping Characteristic
B
Rated Short-Circuit Capacity
(230 V) 6 kA
Number of Outputs
3
Number of Phases
1
Number of Earth Leakage Circuit Breakers (ELCBs)
3 | 30mA 0 | 300mA 0
Number of Miniature Circuit Breakers (MCBs)
Single-Phase 3 | Three-Phase 0
Number of Phases in Cooking Group
0
Number of Rows
2
Closure Type
Snap Function
Cover Plate Type
Cover
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Plastic
RAL Number
Similar to RAL 9005
Color
Black
Number of Batteries
0
RoHS Information
EU Declaration of Conformity / Distribution boards (domestic use) HAFONORM
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
0b3c030b-aa50-41f2-9e2c-2922b0ef44f1 Netherlands (NL)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP2XC
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
24
Product Net Width
220 mm
Product Net Height
285 mm
Product Net Depth / Length
110 mm
Product Net Weight
1.792 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
2.02605 kg
Declaration of Conformity - CE
EU Declaration of Conformity / Distribution boards (domestic use) HAFONORM
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
eClass
V11.0 : 27142415
Object Classification Code
Not applicable
