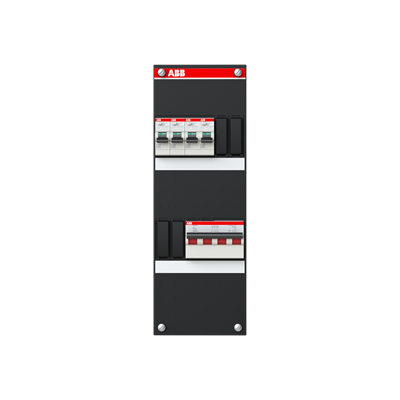

1SPF006912F0102
Part Number: 1SPF006912F0102
Product Information
Tripping Characteristic
B
Rated Current (In)
Main Switch 40 A
Rated Short-Circuit Capacity
(230 V) 6 kA
Number of Poles Main Switch
4
Number of Outputs
4
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
4 | 30mA 0 | 300mA 0
Number of Miniature Circuit Breakers (MCBs)
Single-Phase 4 | Three-Phase 0
Number of Phases in Cooking Group
0
Number of Rows
2
Closure Type
Snap Function
Cover Plate Type
Cover
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Plastic
RAL Number
Similar to RAL 9005
Color
Black
RoHS Information
EC Declaration of Conformity Surface mounted enclosures - Hafonorm Comfort Range
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240718
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
110 mm
Product Net Height
350 mm
Product Net Depth / Length
110 mm
Product Net Weight
1.729 kg
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.988 kg
Declaration of Conformity - CE
EC Declaration of Conformity Surface mounted enclosures - Hafonorm Comfort Range
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
