1SPF006929F0515
Part Number: 1SPF006929F0515
Product Information
Extended Description

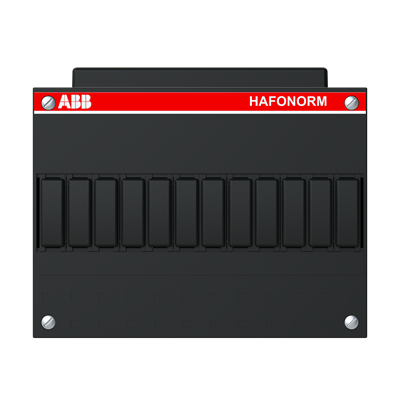

1SPF006929F0515 ABB: Small distribution board Hafonorm Empty Consumer Unit
Environmental Product Declaration - EPD
EPD_unequipped installation cabinets with little to no metal
Number of Flange Openings
4
Number of Conduit Inlets
0
Number of Rows
1
Cover Plate Type
Cover
Mounting Type
Surface mounting
Surface Finishing
Untreated
Housing Material
Plastic
Cover Style
with Notch
RAL Number
RAL 9017 - Traffic Black
Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
34869fb7-e93a-4e20-98e9-abec475cfa50 Netherlands (NL)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP20
Protection Class
Grounded (Class I)
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
11
Product Net Width
175.000 mm
Product Net Height
145.000 mm
Product Net Depth / Length
230.000 mm
Product Net Weight
0.334 kg
Built-In Depth (t2)
131 mm
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.43 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142408
Object Classification Code
Not applicable
