1SPF006939F0001
Part Number: 1SPF006939F0001
Product Information
Extended Description

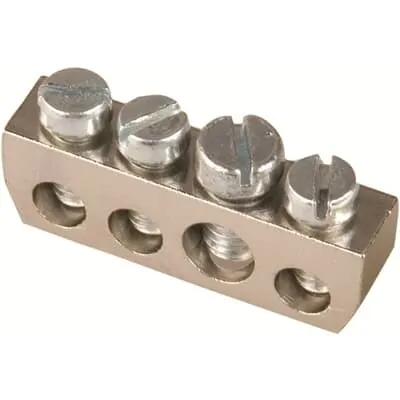

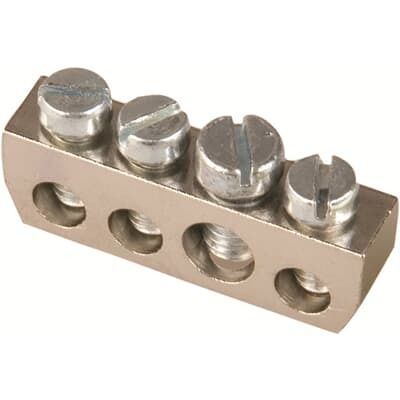

1SPF006939F0001 ABB: Rail terminal bar Hafonorm Terminal block for consumer unit
Rated Current (In)
63 A
Number of Inputs
1
Number of Outputs
3
Number of Auxiliary Contacts NO
1
Number of Poles
1P
Number of Connections
Number of connections 10 mm2: 3 | Number of connections 16 mm2: 1 | Number of connections total: 4
Connection Type
Screw
Mounting Type
Snap
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
acecb8d9-f306-4120-b596-49d2b18fa106 Netherlands (NL)
WEEE Category
Product Not in WEEE Scope
Product Net Width
12.000 mm
Product Net Height
7.000 mm
Product Net Depth / Length
28.000 mm
Product Net Weight
0.001 kg
Package Level 1 Units
bag 10 piece
Package Level 1 Gross Weight
0.07 kg
ETIM 8
EC000275 - Rail terminal bar
ETIM 9
EC000275 - Main line branch terminal
eClass
V11.0 : 27400603
