1SPF006939F0360
Part Number: 1SPF006939F0360
Product Information
Extended Description

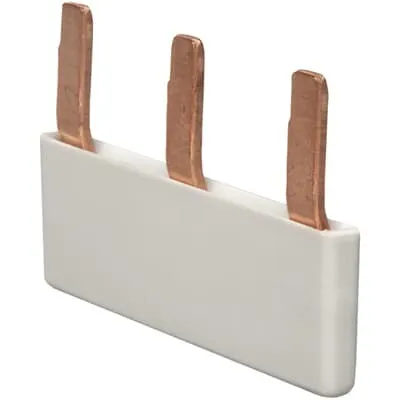

1SPF006939F0360 ABB: Phase busbar Hafonorm Rail, 1-Phase, 3-Pole, Pitch 17.8
Voltage Protection Level ( Up)
4.5 kV
Rated Short-time Withstand Current Low Voltage (Icw)
25 kA
Rated Conditional Short-Circuit Current (Inc)
25 kA
Rated Uninterrupted Current (Iu)
63 A
Pitch
44,5_MMT$
Number of Poles
3P
Number of Phases
1
Number of Mountable Devices
3
Connection Type
Pin
Color
Grey
Rated Cross-Section
10 mm²
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
25.000 mm
Product Net Height
4.000 mm
Product Net Depth / Length
45.000 mm
Product Net Weight
0.01 kg
Package Level 1 Units
bag 20 piece
Package Level 1 Gross Weight
0.26 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000215 - Phase busbar
ETIM 9
EC000215 - Phase busbar
eClass
V11.0 : 27371306
