1SPF006964F0220
Part Number: 1SPF006964F0220
Product Information
Extended Description

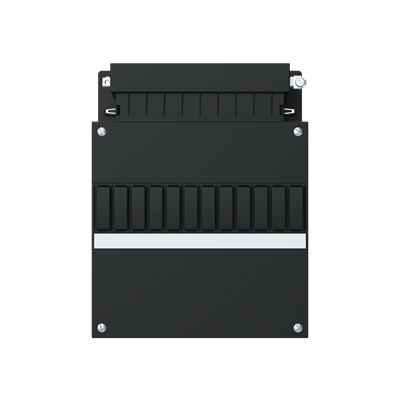

1SPF006964F0220 ABB: Small distribution board Hafonorm Empty CU with DIN-profile
ABB EcoSolutions
Yes
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 93.9 %
Sustainable Material Content in Product (wt. %)
Mechanically Recycled Polymer - 90.9 % | Recycled Metal - 9.1 %
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Sustainable Material Content in Packaging (wt. %)
FSC 100% Cardboard - 100 %
Extended Product Lifetime
Product Durability | Product Modularity
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
EPD_unequipped installation cabinets without busboards
Number of Flange Openings
4
Number of Conduit Inlets
16
Number of Rows
1
Cover Plate Type
Cover
Mounting Type
Surface mounting
Surface Finishing
Untreated
Housing Material
Plastic
Cover Style
with Notch
RAL Number
RAL 9017 - Traffic Black
Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP20
Protection Class
Grounded (Class I)
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
12
Product Net Width
235.000 mm
Product Net Height
140.000 mm
Product Net Depth / Length
285.000 mm
Product Net Weight
1.264 kg
Built-In Depth (t2)
75 mm
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
1.4822 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142408
Object Classification Code
Not applicable
