1SPF006964F0855
Part Number: 1SPF006964F0855
Product Information
Extended Description

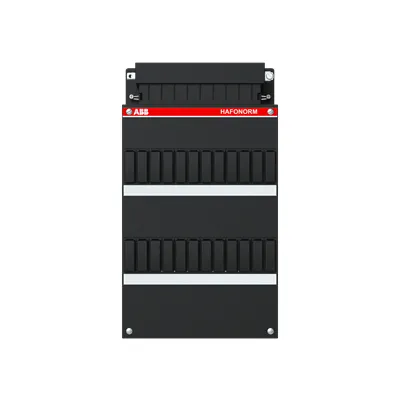

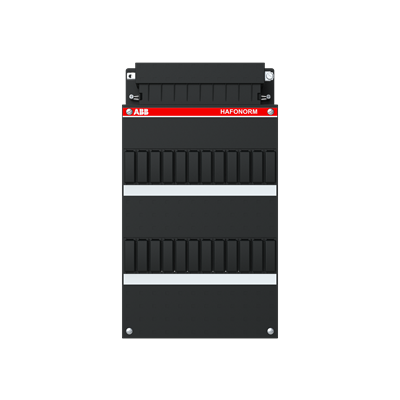

1SPF006964F0855 ABB: Small distribution board Hafonorm Empty CU with 2 Busboards 1-Phase
Environmental Product Declaration - EPD
EPD_unequipped installation cabinets with busboards
Number of Flange Openings
6
Number of Conduit Inlets
16
Number of Rows
2
Cover Plate Type
Cover
Mounting Type
Surface mounting
Surface Finishing
Untreated
Housing Material
Plastic
Cover Style
with Notch
RAL Number
RAL 9017 - Traffic Black
Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
34869fb7-e93a-4e20-98e9-abec475cfa50 Netherlands (NL)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP20
Protection Class
Grounded (Class I)
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
12
Product Net Width
235.000 mm
Product Net Height
140.000 mm
Product Net Depth / Length
400.000 mm
Product Net Weight
1.135 kg
Built-In Depth (t2)
75 mm
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
1.36905 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142408
Object Classification Code
Not applicable
