1SPF006966F0115
Part Number: 1SPF006966F0115
Product Information
Extended Description

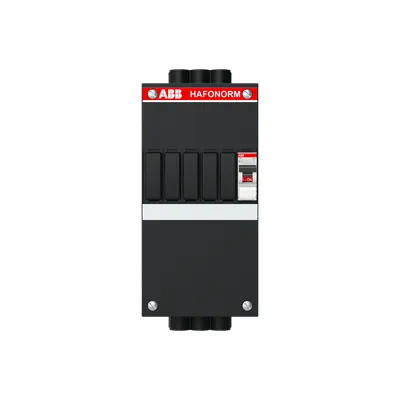

1SPF006966F0115 ABB: Small distribution board equipped Hafonorm MCB 1p+0 B16A
Tripping Characteristic
B
Rated Short-Circuit Capacity
(230 V) 6 kA
Number of Poles Main Switch
0
Number of Outputs
2
Number of Phases
1
Number of Earth Leakage Circuit Breakers (ELCBs)
0 | 30mA 0 | 300mA 0
Number of Miniature Circuit Breakers (MCBs)
Single-Phase 1 | Three-Phase 0
Number of Phases in Cooking Group
0
Number of Rows
1
Closure Type
Snap Function
Cover Plate Type
Cover
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Plastic
RAL Number
Similar to RAL 9005
Color
Black
Number of Batteries
0
RoHS Information
EU Declaration of Conformity / Distribution boards (domestic use) HAFONORM
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
5f567ed5-c56c-46ef-a422-c942ab0fa83f Netherlands (NL)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP2XC
Width in Number of Modular Spacings
6
Product Net Width
110 mm
Product Net Height
255 mm
Product Net Depth / Length
110 mm
Product Net Weight
0.523 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.594 kg
Declaration of Conformity - CE
EU Declaration of Conformity / Distribution boards (domestic use) HAFONORM
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
eClass
V11.0 : 27142415
