1SPF006971F0120
Part Number: 1SPF006971F0120
Product Information
Extended Description

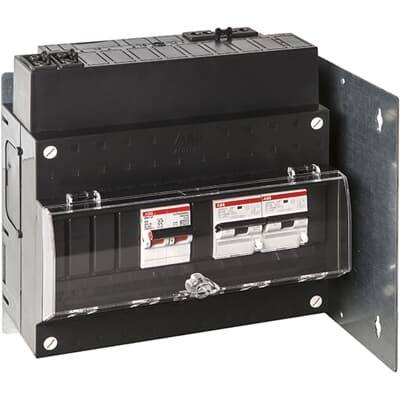

1SPF006971F0120 ABB: Small distribution board equipped Hafonorm Kitchen panel Main switch 2x RCBO 16A
Tripping Characteristic
B
Rated Current (In)
Main Switch 40 A
Rated Short-Circuit Capacity
(230 V) 6 kA
Number of Poles Main Switch
2
Number of Outputs
0
Number of Phases
1
Number of Earth Leakage Circuit Breakers (ELCBs)
2 | 30mA 0 | 300mA 0
Number of Miniature Circuit Breakers (MCBs)
Single-Phase 2 | Three-Phase 0
Number of Phases in Cooking Group
0
Number of Rows
1
Closure Type
Snap Function
Cover Plate Type
Cover
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Plastic
RAL Number
Similar to RAL 9005
Color
Black
Number of Batteries
0
RoHS Information
EU Declaration of Confirmity with relevant community harmonisation legislation | Keukenverdelers
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20180320
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
72c5a6bc-f7c0-42ff-81f4-ff6fe6f5f8df Netherlands (NL)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
220 mm
Product Net Height
219 mm
Product Net Depth / Length
131 mm
Product Net Weight
2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
2.175 kg
Declaration of Conformity - CE
EU Declaration of Confirmity with relevant community harmonisation legislation | Keukenverdelers
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
eClass
V11.0 : 27142415
