1SPF006971F0360
Part Number: 1SPF006971F0360
Product Information
Extended Description

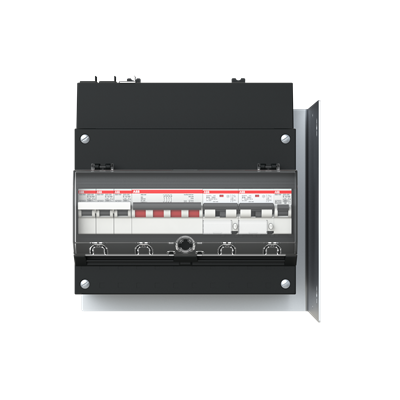

1SPF006971F0360 ABB: Small distribution board equipped Hafonorm Kitchen panel Main switch 3-phase Cooking group 3x B16A 1x MCB B16A - 2x RCBO B16A/0,03
Tripping Characteristic
B
Rated Current (In)
Main Switch 40 A
Rated Short-Circuit Capacity
(230 V) 6 kA
Number of Poles Main Switch
4
Number of Outputs
2
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
2 | 30mA 0 | 300mA 0
Number of Miniature Circuit Breakers (MCBs)
Single-Phase 3 | Three-Phase 0
Number of Phases in Cooking Group
3
Number of Rows
1
Closure Type
Snap Function
Cover Plate Type
Cover
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Plastic
RAL Number
Similar to RAL 9005
Color
Black
Number of Batteries
0
RoHS Information
EU Declaration of Confirmity with relevant community harmonisation legislation | Keukenverdelers
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20180320
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
72c5a6bc-f7c0-42ff-81f4-ff6fe6f5f8df Netherlands (NL)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
220 mm
Product Net Height
219 mm
Product Net Depth / Length
131 mm
Product Net Weight
2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
2.175 kg
Declaration of Conformity - CE
EU Declaration of Confirmity with relevant community harmonisation legislation | Keukenverdelers
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
eClass
V11.0 : 27142415
