1SPF006972F0028
Part Number: 1SPF006972F0028
Product Information
Extended Description

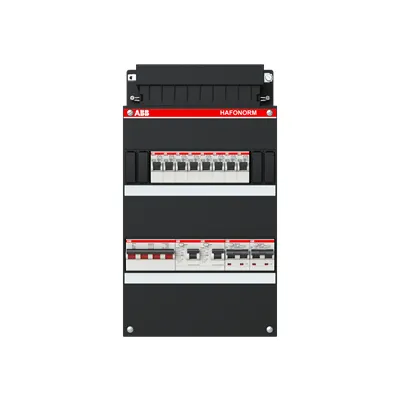

1SPF006972F0028 ABB: Small distribution board equipped Hafonorm 3-phase, main switch 40A 4P 2 RCCB 63A 2P 30 mA, 8 MCB B16 4 RCBO B16 1P+N 300 mA 1 RCBO C16 1P+N 30 mA
Tripping Characteristic
B
Rated Current (In)
Main Switch 40 A
Rated Short-Circuit Capacity
(230 V) 6 kA
Number of Poles Main Switch
4
Number of Outputs
10
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
2 | 30mA 2 | 300mA 0
Number of Miniature Circuit Breakers (MCBs)
Single-Phase 10 | Three-Phase 0
Number of Phases in Cooking Group
0
Number of Rows
2
Closure Type
Snap Function
Cover Plate Type
Cover
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Plastic
RAL Number
Similar to RAL 9005
Color
Black
RoHS Information
EU Declaration of Conformity / switch boxes HAFONORM
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
97e7df34-cdc6-4e64-9a6a-0d5fa543b92e Netherlands (NL)
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
220 mm
Product Net Height
395 mm
Product Net Depth / Length
110 mm
Product Net Weight
3.026 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
3.26005 kg
Declaration of Conformity - CE
EU Declaration of Conformity / switch boxes HAFONORM
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
eClass
V11.0 : 27142415
Object Classification Code
Not applicable
