1SPK007900F0002
Part Number: 1SPK007900F0002
Product Information
Extended Description

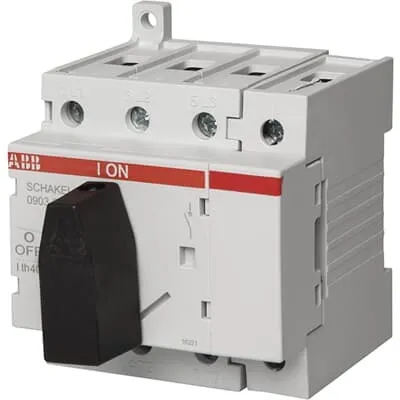

1SPK007900F0002 ABB: Switch disconnector Hafonorm Rotary switch 4-pole 40A
Rated Operational Voltage
230...400 V | Maximum 400 V
Rated Operational Current AC-21A (Ie)
(400 V) 40 A
Rated Short-time Withstand Current Low Voltage (Icw)
0.5 kA
Rated Uninterrupted Current (Iu)
40 A
Number of Auxiliary Contacts NC
4
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts CO (SPDT)
0
Number of Poles
4P
Number of Switches
1
Design
Built-in device fixed built-in technique
Actuator Type
Turn button
Connection Type
Screw
Control Element Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
Front IP10
Product Net Width
75.000 mm
Product Net Height
85.000 mm
Product Net Depth / Length
72.000 mm
Product Net Weight
0.32 kg
Package Level 1 Units
box 10 piece
Package Level 1 Gross Weight
3.3677 kg
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.0 : 27371403
Object Classification Code
Q
