1SPK007900F0200
Part Number: 1SPK007900F0200
Product Information
Extended Description

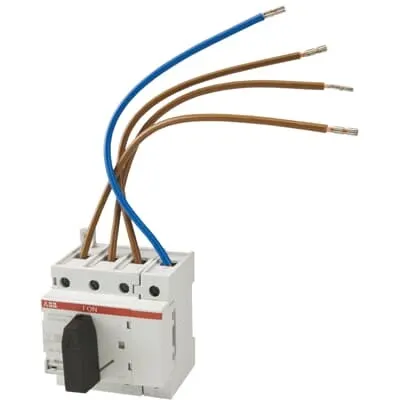

1SPK007900F0200 ABB: Switch disconnector Hafonorm Rotary switch 4-pole 40A with wiring
Rated Operational Voltage
230...400 V | Maximum 400 V
Rated Operational Current AC-21A (Ie)
(400 V) 40 A
Rated Short-time Withstand Current Low Voltage (Icw)
0.5 kA
Rated Uninterrupted Current (Iu)
40 A
Number of Auxiliary Contacts NC
4
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts CO (SPDT)
0
Number of Poles
4P
Number of Switches
1
Design
Built-in device fixed built-in technique
Actuator Type
Rocker lever
Connection Type
Screw
Control Element Color
Black
Number of Batteries
0
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
Front IP20
Environmental Information
Declaration regarding the REACH - Regulation
Product Net Width
75.000 mm
Product Net Height
85.000 mm
Product Net Depth / Length
72.000 mm
Product Net Weight
0.32 kg
Package Level 1 Units
box 6 piece
Package Level 1 Gross Weight
2.0335 kg
Declaration of Conformity - CE
CE Declaration of Conformity HAFONORM distribution boards (domestic use)
Instructions and Manuals
APIM0709-123NL/120824
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.0 : 27371403
Object Classification Code
F
