1SPN001600F0010
Part Number: 1SPN001600F0010
Product Information
Extended Description

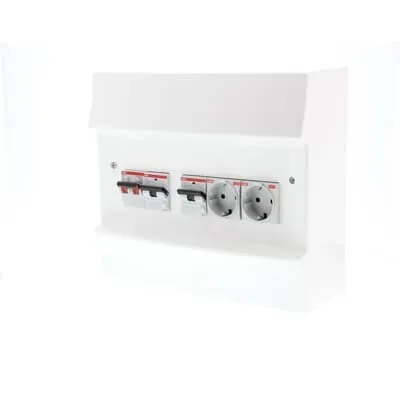

1SPN001600F0010 ABB: Distribution board PV-convertor 2x RCBO 16A/0,03 Main switch 40A
Tripping Characteristic
B
Rated Current (In)
Main Switch 40 A
Rated Short-Circuit Capacity
(230 V) 6 kA
Number of Poles Main Switch
2
Number of Outputs
2
Number of Phases
1
Number of Earth Leakage Circuit Breakers (ELCBs)
0 | 30mA 0 | 300mA 0
Number of Miniature Circuit Breakers (MCBs)
Single-Phase 2 | Three-Phase 0
Number of Phases in Cooking Group
0
Number of Rows
1
Closure Type
Snap Function
Cover Plate Type
Cover
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Plastic
RAL Number
Similar to RAL 9003
Color
White
Number of Batteries
0
RoHS Information
EU Declaration of Conformity / Verdeler ZV-16
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20160420
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP41
Environmental Information
Declaration regarding the REACH - Regulation
Width in Number of Modular Spacings
13
Product Net Width
297 mm
Product Net Height
261 mm
Product Net Depth / Length
119 mm
Product Net Weight
2.054 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
2.212 kg
Declaration of Conformity - CE
EU Declaration of Conformity / Verdeler ZV-16
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
eClass
V11.0 : 27142415
Object Classification Code
Not applicable
