1SPN004000F0020
Part Number: 1SPN004000F0020
Product Information
Extended Description

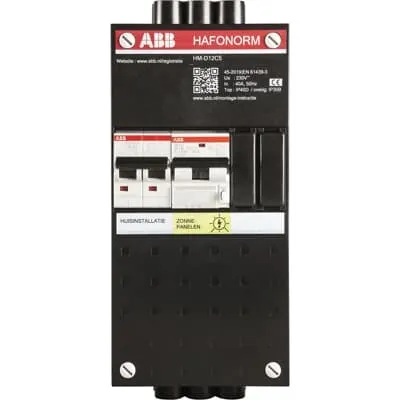

1SPN004000F0020 ABB: Small distribution board equipped Hafonorm Consumer unit PV connection PV 16A 1-phase, total max 40A 1-phase
Tripping Characteristic
B
Rated Short-Circuit Capacity
(230 V) 6 kA
Number of Outputs
2
Number of Phases
1
Number of Earth Leakage Circuit Breakers (ELCBs)
1 | 30mA 0 | 300mA 0
Number of Miniature Circuit Breakers (MCBs)
Single-Phase 0 | Three-Phase 1
Number of Phases in Cooking Group
0
Number of Rows
1
Closure Type
Snap Function
Cover Plate Type
Cover
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Plastic
RAL Number
Similar to RAL 9005
Color
Black
Number of Batteries
0
RoHS Information
EU Declaration of Conformity Consumer Units - HAFONORM (PV extension)
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20250114
REACH Declaration
REACH Declaration ABB BV, Ede
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230911
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
f3faac1c-96df-42fe-ab39-2ce18adf6295 Netherlands (NL)
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP2XC
Width in Number of Modular Spacings
6
Product Net Width
110 mm
Product Net Height
240 mm
Product Net Depth / Length
110 mm
Product Net Weight
0.8 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.871 kg
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Units - HAFONORM (PV extension)
Data Sheet, Technical Information
WebCatalog_Consumer Units and Junction Boxes
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
eClass
V11.0 : 27142415
