ABB 1STQ007414A0000 Other/Miscellaneous - RoHS/REACH
Part Number: 1STQ007414A0000
Quick Summary
ABB 1STQ007414A0000 Main Distribution Board is designed to streamline power distribution for System pro E Power modular boards, delivering a rugged, install-ready solution for control panels. Manufacturers and engineers struggle to integrate modular boards quickly while maintaining regulatory compliance and predictable lead times. This product aligns with CE conformity, RoHS 2, REACH, and WEEE criteria, giving you traceability and audit-ready documentation. Coupled with pre-assembled or kit mounting and flat copper busbars, it accelerates commissioning while reducing space needs and total cost of ownership. This combination supports efficient panel design, easier serviceability, and scalable upgrades for growing industrial facilities.
Product Information
Extended Description

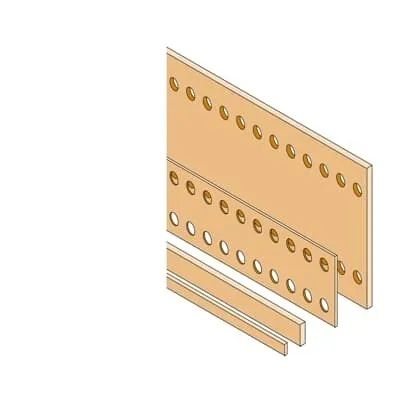

1STQ007414A0000 ABB: flat copper busbar 100x10 l=1750mm
Suitable For
Modular boards - System pro E Power
Suitable for Product Class
Main Distribution Boards
Accessory Type
15. Distribution and earthing system
Mounting Type
Kit | Pre assembled
Product Type
5S5S10S1010
Material
Flat Copper
Options Provided
7. Flat busbars
Remarks
ETIM
RoHS Information
LB-DT 19-21D - RoHS II - Enclosures
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20231024
REACH Declaration
1SDL000282R1279 - REACh - Enclosures
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20241125
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Environmental Information
1STC803005D0208 | Breakers - Packaging disposal information
Product Net Width
1750 mm
Product Net Height
100 mm
Product Net Depth / Length
10 mm
Product Net Weight
15.50 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
15.5 kg
Declaration of Conformity - CE
1STC860111
Instructions and Manuals
System pro E power TBBS - Instruction Manual - Linear busbar system | System pro E power TBBS - Instruction Manual - Scaled busbar holder
Instructions and Manuals (Part 2)
1SDC007110G0902
Data Sheet, Technical Information
1STC803005D0208
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.1 : 27370303
Flat copper busbars provide low contact resistance and high current carrying capability, improving heat dissipation and reducing voltage drop in dense panel layouts. This directly translates to reliable operation and longer service intervals on System pro E Power installations. The 1.75 m busbar length and 100x10 mm cross-section enable a compact, modular topology, lowering spare parts and harnessing time for OEM lines. Mounting options include Kit or Pre-assembled configurations, enabling flexible deployment from initial build to field upgrades and significantly cutting installation time. Seven flat busbars included streamline standard distribution schemes, reducing procurement steps and increasing process consistency for panel builders. RoHS 2 and REACH declarations, together with WEEE classification, minimize regulatory risk and simplify audits, disposal planning, and end-of-life handling. Overall, the design supports faster commissioning, lower total cost of ownership, and easy scalability across growing facilities.
Get a Quick Quote for a ABB 1STQ007414A0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1STQ007414A0000?
Enquire Now
FAQs
The product supports both kit and pre-assembled mounting, offering a flexible installation path. Pre-assembled configurations enable rapid commissioning with minimal field assembly, while the kit option lets panel builders tailor the assembly to specific space constraints and evolving control architectures. This dual approach reduces project risk and accelerates time-to-value for System pro E Power deployments.
Key specifications include a product net width of 1750 mm, product net height of 100 mm, and product net depth of 10 mm, with a reference width range of 400–1600 mm and a reference height range of 1400–2200 mm. The product weight is 15.5 kg, and typical package weight is 15.5 kg. These figures support accurate enclosure planning and cable routing in modular distribution cabinets.
Yes. The RoHS status follows EU Directive 2011/65/EU with the 2015/863 amendment dated 22 July 2019, and RoHS information is tracked under LB-DT 19-21D for enclosures with a RoHS date of 20231024. The REACH declaration is 1SDL000282R1279, with REACH information indicating no substances above 0.1 mass percent. A REACH date of 20241125 is noted for compliance validation.
The product carries the CE Declaration of Conformity 1STC860111 and aligns with ETIM classifications EC001522 for Busbar in both ETIM 8 and ETIM 9, plus eClass V11.1 27370303. WEEE categorization places it in category 5 (Small Equipment). These classifications support regulatory compliance, purchasing audits, and interoperability within ABB’s System pro E Power ecosystem.
Using this distribution board reduces installation labor and equipment handling due to kit and pre-assembled mounting, while ensuring regulatory compliance and end-of-life planning. Its flat copper busbars improve current capacity and heat management, supporting higher uptime and reduced maintenance. For OEMs and panel builders, this translates to faster project delivery, lower risk, and scalable upgrades across modular distributions in industries like automation, energy, and process control.
