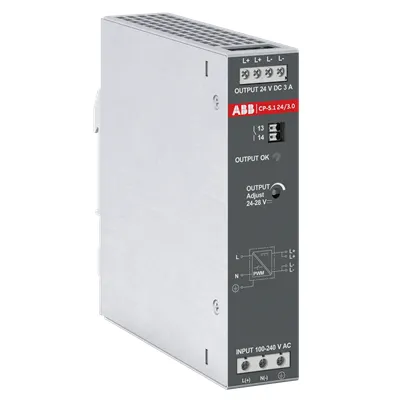

ABB 1SVR320361R1000 Power Supply - CE/UL Listed
Part Number: 1SVR320361R1000
Quick Summary
ABB 1SVR320361R1000 power supply enables reliable 24 V DC control in industrial automation panels. Engineers often struggle with uptime when supplies can't tolerate wide voltage swings or provide true redundancy. It carries CE, UKCA, CB and cULus certifications to support global compliance and safe, reliable operation. For system integrators, DIN-rail mounting, adjustable 24–28 V output, and parallel operation for redundancy translate into lower install costs and simpler inventory.
Product Information
Extended Description
1SVR320361R1000 ABB: The CP-S.1 24/3.0 is a power supply from the new generation CP-S.1 range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-277 V DC, rated input voltage is 100-240 V AC, respectively 100-250 V DC. The rated output power is 72 W, rated output current is 3 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 150 % for 5 s and allows parallel operation to increase capacity and to enable redundancy. Redundancy unit and buffer modules are available as accessories.
Country of Origin
China (CN)
Lead Time
5 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPREXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Warranty Return
Product under warranty must be returned
Lead Time
28 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USSVCEXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-S.1 24/3.0 Primary switch mode power supply
Instructions and Manuals
Operating and installation instructions - CP-S.1 Primary switch mode power supplies
Wiring Diagram
9AKK107992A8774
Product Net Width
30.5 mm
Product Net Height
129.4 mm
Product Net Depth / Length
127 mm
Product Net Weight
0.55 kg
Package Level 1 Width
64 mm
Package Level 1 Depth / Length
155 mm
Package Level 1 Height
169 mm
Package Level 1 Gross Weight
0.67 kg
Package Level 1 EAN
4013614561092
Package Level 1 Units
box 1 piece
Package Level 2 Width
393 mm
Package Level 2 Depth / Length
600 mm
Package Level 2 Height
190 mm
Package Level 2 Gross Weight
15 kg
Package Level 2 Units
carton 21 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC | 100 ... 250 V DC
Input Voltage (Uin)
85 ... 264 V AC | 90 ... 277 V DC
Typical Input Current
(115 V AC) 1.38 A | (230 V AC) 0.95 A
Hold-up Time
(230 V AC) min. 20 ms
Rated Frequency (f)
50 / 60 Hz | DC
Rated Frequency Limits
45 ... 65 Hz
Characteristic of Output
U/I characteristic curve with power reserve
Rated Output Power
72 W
Output Power
72 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Output Current
3 A
Output Current Maximum (Iout)
4.5 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.8 kV | Output Circuit 0.8 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.5 ... 2.5 mm² | Flexible 0.5 ... 2.5 mm² | Rigid 0.5 ... 2.5 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.5 ... 2.5 mm² | Flexible 0.5 ... 2.5 mm² | Rigid 0.5 ... 2.5 mm²
Tightening Torque
Input Circuit 0.5 N·m | Output Circuit 0.5 N·m
Wire Stripping Length
Auxiliary Circuit 7 mm | Input Circuit 9 mm | Output Circuit 9 mm
Minimum Mounting Distance
Other Device Same Type, Horizontal 30 mm | Other Device Same Type, Vertical 50 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 20-14 AWG | Flexible 20-14 AWG | Rigid 20-14 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible with Ferrule 20-14 AWG | Flexible 20-14 AWG | Rigid 20-14 AWG
Tightening Torque UL/CSA
Input Circuit 4.4 in·lb | Output Circuit 4.4 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Surge Immunity acc. to IEC 61000-4-5
Level 4 Line-to-Ground 4 kV | Level 4 Line-to-Line 2 kV
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
1SVD982043-0001
RoHS Status
Following EU Directive 2011/65/EU
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate - CP-S.1 24/3.0 Power supply unit
cULus Certificate
cULus61010-1_E174460 | cULus121201_E523399
Declaration of Conformity - CE
EU Declaration of Conformity - CP-S.1 Power supply units
Declaration of Conformity - UKCA
UK Declaration of Conformity - CP-S.1 Power supply units
DNV Certificate
DNV Certificate - CP-S.1 Power supply units
SEMI Certificate
9AKK108470A0202
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712886
E-Number (Norway)
6608900
E-Number (Sweden)
5213654
Wide input range and universal compatibility reduce cabling complexity and site variance, enabling faster panel commissioning and fewer field adjustments. The business impact is lower installation risk and consistent performance across environments, especially in factories with mixed AC/DC supplies. The 24 V DC, 72 W output delivers stable power for PLCs, sensors, and drives, with an adjustable output that keeps downstream electronics within tolerance even as supply conditions vary. In practice, this means fewer nuisance trips and reduced component stress, which shortens commissioning times and extends equipment life. Parallel operation and available redundancy modules provide a clear path to high-availability architectures, reducing downtime costs in critical lines. EMC and safety features paired with IP20 protection simplify risk assessments and permit easier certification for machine builders. DIN-rail mounting and standard DIN dimensions ensure quick, repeatable installations inside control cabinets. Mounting on TH35 rails minimizes space conflicts and supports scalable automation layouts. The product’s RoHS and REACH compliance, along with robust fault tolerance, positions it as a future-proof choice for new builds and retrofits alike.
Get a Quick Quote for a ABB 1SVR320361R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR320361R1000?
Enquire Now
FAQs
Install on a standard TH35 DIN rail (TH35-15 or TH35-7.5) with a minimum horizontal spacing of 30 mm from other devices. Use the recommended tightening torque of 0.5 N·m for input and output terminals, and wire flex or rigid 0.5–2.5 mm² conductors. Ensure IP20 protection and verify hold-up time by applying rated input voltage before commissioning.
Input accepts 85–264 V AC or 90–277 V DC, with rated input 100–240 V AC / 100–250 V DC. Output is 24 V DC at 3 A (4.5 A peak), 72 W, with an adjustable output from 24 to 28 V DC and a U/I characteristic with power reserve.
Yes. The CP-S.1 24/3.0 supports parallel operation to increase capacity and enable redundancy. Redundancy modules and buffer modules are available as accessories to build a fault-tolerant power architecture.
The unit carries CE and UKCA declarations, plus CB Certificate and cULus listings. It is RoHS compliant and supports REACH declarations, with WEEE labeling for B2B applications and CMRT documentation available as part of compliance packages.
Lead times vary by region: DEAPR typically 5 days, SGIND002 0 days, and USINY 28 days. Stock is listed at DEAPREXPU, SGIND002EXPU, and USSVCEXPU warehouses, aiding faster onboarding for multi-site deployments.
