ABB 1SVR320561R1000 Power Supply - CE/UKCA Certified
Part Number: 1SVR320561R1000
Quick Summary

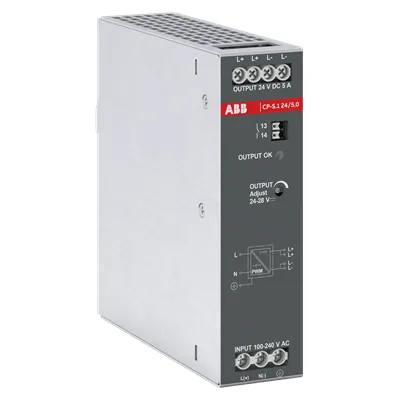

1SVR320561R1000 is a power supply for automation cabinets and distributed control systems. Operators often contend with fluctuating mains, startup surges, and the need for reliable redundancy; this device addresses those challenges with robust performance and straightforward integration. It carries CE, UKCA, and CB certifications along with DoC and UL recognition for global compliance. With 24 V DC output at 5 A (120 W) and a wide input range, it supports modern machine architectures while enabling parallel operation and redundancy when higher capacity or fault tolerance is required. The compact DIN-rail mounted package fits standard panels, delivering measurable gains in reliability and energy efficiency for industrial applications.
Product Information
Extended Description
1SVR320561R1000 ABB: The CP-S.1 24/5.0 is a power supply from the new generation CP-S.1 range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-277 V DC, rated input voltage is 100-240 V AC, respectively 100-250 V DC. The rated output power is 120 W, rated output current is 5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 150 % for 5 s and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
28 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Lead Time
21 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USSVCEXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-S.1 24/5.0 Primary switch mode power supply
Instructions and Manuals
Operating and installation instructions - CP-S.1 Primary switch mode power supplies
Wiring Diagram
9AKK107992A8774
Product Net Width
35.5 mm
Product Net Height
129.4 mm
Product Net Depth / Length
127 mm
Product Net Weight
0.69 kg
Package Level 1 Width
64 mm
Package Level 1 Depth / Length
155 mm
Package Level 1 Height
169 mm
Package Level 1 Gross Weight
0.8 kg
Package Level 1 EAN
4013614561108
Package Level 1 Units
box 1 piece
Package Level 2 Width
393 mm
Package Level 2 Depth / Length
600 mm
Package Level 2 Height
190 mm
Package Level 2 Gross Weight
17.5 kg
Package Level 2 Units
carton 21 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC | 100 ... 250 V DC
Input Voltage (Uin)
85 ... 264 V AC | 90 ... 277 V DC
Typical Input Current
(115 V AC) 1.24 A | (230 V AC) 0.67 A
Hold-up Time
(230 V AC) min. 20 ms
Rated Frequency (f)
50 / 60 Hz | DC
Rated Frequency Limits
45 ... 65 Hz
Characteristic of Output
U/I characteristic curve with power reserve
Rated Output Power
120 W
Output Power
120 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Output Current
5 A
Output Current Maximum (Iout)
7.5 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.8 kV | Output Circuit 0.8 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.5 ... 4.0 mm² | Flexible 0.5 ... 4.0 mm² | Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.5 ... 4.0 mm² | Flexible 0.5 ... 4.0 mm² | Rigid 0.5 ... 4 mm²
Tightening Torque
Input Circuit 0.5 N·m | Output Circuit 1.13 N·m
Wire Stripping Length
Auxiliary Circuit 7 mm | Input Circuit 9 mm | Output Circuit 9 mm
Minimum Mounting Distance
Other Device Same Type, Horizontal 30 mm | Other Device Same Type, Vertical 50 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 20-12 AWG | Flexible 20-12 AWG | Rigid 20-12 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible with Ferrule 20-12 AWG | Flexible 20-12 AWG | Rigid 20-12 AWG
Tightening Torque UL/CSA
Input Circuit 4.4 in·lb | Output Circuit 4.4 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Surge Immunity acc. to IEC 61000-4-5
Level 4 Line-to-Ground 4 kV | Level 4 Line-to-Line 2 kV
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
1SVD982043-0001
RoHS Status
Following EU Directive 2011/65/EU
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate - CP-S.1 24/5.0 Power supply unit
cULus Certificate
cULus61010-1_E174460 | cULus121201_E523399
Declaration of Conformity - CE
EU Declaration of Conformity - CP-S.1 Power supply units
Declaration of Conformity - UKCA
UK Declaration of Conformity - CP-S.1 Power supply units
DNV Certificate
DNV Certificate - CP-S.1 Power supply units
SEMI Certificate
9AKK108470A0203
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712887
E-Number (Norway)
6608901
E-Number (Sweden)
5213655
Wide input range and power factor correction are designed for global installations, reducing mains-related faults and improving overall uptime in automated lines. The PF correction (EN 61000-3-2) helps keep compliant power quality while supporting efficient energy use in continuous operation. The result is improved machine efficiency and lower maintenance costs in factories relying on consistent DC power for sensors and controllers. The 24 V DC output at 5 A (120 W) with a U/I characteristic and a 150% reserve for 5 s provides robust startup and load handling for drives, PLCs, and I/O modules, minimizing nuisance trips and voltage dips during peak loads. This enables reliable operation of servo drives, HMIs, and distributed I/O ecosystems in high-demand environments. Parallel operation and redundancy options let you scale capacity or create fault-tolerant power rails without redesigning control architectures, reducing downtime risk on critical lines. Installing this DIN-rail power supply saves panel space and simplifies wiring, supports modular automation deployment, and accelerates commissioning in new builds or retrofits. The device’s IP20 housing and standard TH35 mounting ensure straightforward integration into existing control panels, reducing engineering time and install costs. Compliance and serviceability are reinforced by CE, UKCA, CB certificates and a warranty framework that aligns with enterprise procurement requirements.
