ABB 1SVR320661R1000 Power Supply - EN 61000-3-2 PFC
Part Number: 1SVR320661R1000
Quick Summary
The CP-S.1 24/10.0 power supply powers industrial PLCs and control panels with stable 24 V DC output. With wide input tolerance and optional redundancy, it minimizes downtime and the need for field upgrades. It meets CE, UKCA, CB, and cULus certifications, plus IP20 protection for safe panel mounting. As a DIN-rail ready 24 V DC power supply, it pairs well with ABB controls to deliver reliable, compliant automation power.
Product Information
Extended Description

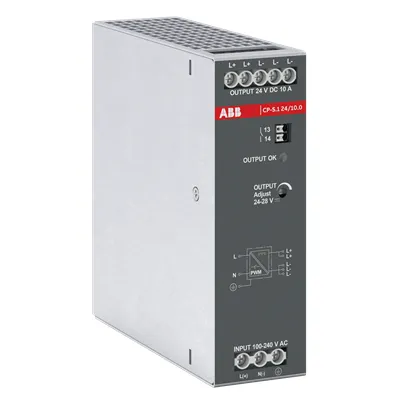

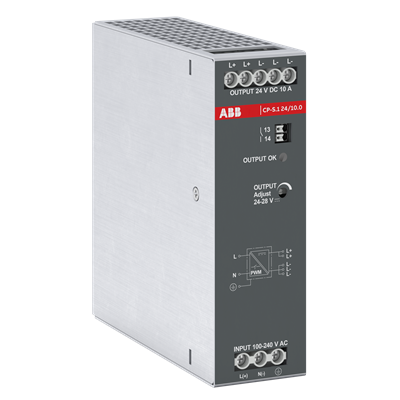

1SVR320661R1000 ABB: The CP-S.1 24/10.0 is a power supply from the new generation CP-S.1 range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-277 V DC, rated input voltage is 100-240 V AC, respectively 100-250 V DC. The rated output power is 240 W, rated output current is 10 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 150 % for 5 s and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-S.1 24/10.0 Primary switch mode power supply
Instructions and Manuals
Operating and installation instructions - CP-S.1 Primary switch mode power supplies
Wiring Diagram
9AKK107992A8774
Product Net Width
40 mm
Product Net Height
129.4 mm
Product Net Depth / Length
127 mm
Product Net Weight
0.83 kg
Package Level 1 Width
72 mm
Package Level 1 Depth / Length
155 mm
Package Level 1 Height
169 mm
Package Level 1 Gross Weight
0.96 kg
Package Level 1 EAN
4013614561115
Package Level 1 Units
box 1 piece
Package Level 2 Width
400 mm
Package Level 2 Depth / Length
600 mm
Package Level 2 Height
190 mm
Package Level 2 Gross Weight
19 kg
Package Level 2 Units
carton 19 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC | 100 ... 250 V DC
Input Voltage (Uin)
85 ... 264 V AC | 90 ... 277 V DC
Typical Input Current
(115 V AC) 2.45 A | (230 V AC) 1.25 A
Hold-up Time
(230 V AC) min. 20 ms
Rated Frequency (f)
50 / 60 Hz | DC
Rated Frequency Limits
45 ... 65 Hz
Characteristic of Output
U/I characteristic curve with power reserve
Rated Output Power
240 W
Output Power
240 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Output Current
10 A
Output Current Maximum (Iout)
15 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.8 kV | Output Circuit 0.8 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.5 ... 4.0 mm² | Flexible 0.5 ... 4.0 mm² | Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.5 ... 4.0 mm² | Flexible 0.5 ... 4.0 mm² | Rigid 0.5 ... 4 mm²
Tightening Torque
Input Circuit 0.5 N·m | Output Circuit 1.13 N·m
Wire Stripping Length
Auxiliary Circuit 7 mm | Input Circuit 9 mm | Output Circuit 9 mm
Minimum Mounting Distance
Other Device Same Type, Horizontal 30 mm | Other Device Same Type, Vertical 50 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 20-12 AWG | Flexible 20-12 AWG | Rigid 20-12 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible with Ferrule 20-12 AWG | Flexible 20-12 AWG | Rigid 20-12 AWG
Tightening Torque UL/CSA
Input Circuit 4.4 in·lb | Output Circuit 4.4 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Surge Immunity acc. to IEC 61000-4-5
Level 4 Line-to-Ground 4 kV | Level 4 Line-to-Line 2 kV
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
1SVD982043-0001
RoHS Status
Following EU Directive 2011/65/EU
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate - CP-S.1 24/10.0 Power supply unit
cULus Certificate
cULus61010-1_E174460 | cULus121201_E523399
Declaration of Conformity - CE
EU Declaration of Conformity - CP-S.1 Power supply units
Declaration of Conformity - UKCA
UK Declaration of Conformity - CP-S.1 Power supply units
DNV Certificate
DNV Certificate - CP-S.1 Power supply units
SEMI Certificate
9AKK108470A0204
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712888
E-Number (Norway)
6608902
E-Number (Sweden)
5213656
The CP-S.1 24/10.0 features a wide input range of 85-264 V AC or 90-277 V DC and an adjustable output from 24 to 28 V DC, delivering up to 240 W (10 A) with a reserve of up to 150% for short-duration overloads. This translates to robust performance across global markets and for mixed-voltage installations, reducing the need for multiple power supplies and simplifying spares inventory. In practice, ABB automation systems gain improved uptime and easier maintenance when feeding PLCs, I/O blocks, and motor drives from a single, centrally specified source. The unit’s EN 61000-3-2 power factor correction helps meet stricter electrical compliance while keeping harmonic distortion low in panel enclosures. Parallel operation and redundancy options further reduce single-point failures, a critical advantage for line-side control systems and safety circuit power. Installation is simplified by DIN-rail mounting (TH35) and a compact 40 mm width, enabling dense panel layouts and faster commissioning. The 24 V DC output is rated at 10 A with an optional peak of 15 A, supporting peak load transients common in automation tasks. Temperature and environmental specs (operating -25 to +70 °C, IP20) ensure dependable operation in typical factory environments, while the wide ambient tolerance accommodates installations in constrained spaces or elevated installations. Documentation and wiring diagrams (Data Sheet CP-S.1, Wiring Diagram 9AKK107992A8774) streamline installation, training, and future upgrades, helping OEMs and installers reduce commissioning time and risk.
Get a Quick Quote for a ABB 1SVR320661R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR320661R1000?
Enquire Now
FAQs
Yes. The CP-S.1 24/10.0 is designed for DIN-rail mounting on TH35 rails (35 x 15 mm or 35 x 7.5 mm) per IEC 60715, which enables fast, secure installation alongside ABB control modules and other automation hardware in standard control cabinets.
The unit delivers 24 V DC at up to 10 A continuous, with a peak capability up to 15 A. Hold-up time is specified for 230 V AC inputs at minimum 20 ms, ensuring stable operation during brief input disturbances and enabling graceful switchover in redundant configurations.
Absolutely. It targets industrial automation applications such as PLCs and I/O modules, with an operating temperature range of -25 to +70 °C and IP20 protection. It’s designed for panel mounting and can support high-load transients common in automated lines, while maintaining reliability and consistent DC voltage.
The CP-S.1 24/10.0 carries CE and UKCA conformity, CB certificates, and cULus safety approvals. It also supports EN 61000-3-2 energy standards for power quality, IP20 protection for non-harsh environments, and ABB’s documentation for DoC and REACH/RoHS compliance.
Key ROI drivers include redundancy options and parallel operation to eliminate single points of failure, wide input tolerance reducing site wiring issues, a durable DIN-rail mount for quick field replacement, and robust environmental specs that minimize unscheduled downtime. The 24 V DC output with 24–28 V adjustable range supports diverse PLCs and peripherals, reducing spare parts variety.
