ABB 1SVR320761R1000 DC Supply - CE/UKCA
Part Number: 1SVR320761R1000
Quick Summary
ABB 1SVR320761R1000 DC supply delivers a stable 24 V DC, up to 20 A, for industrial control panels and automation tasks. It tackles common pain points like wide mains variation and the need for reliable redundancy with a broad input range (85–264 VAC, 90–277 VDC) and a compact DIN‑rail footprint. The unit carries CE and UKCA declarations, CB certificate, and UL/cULus recognition, supporting global compliance. With EN 61000‑3‑2 power factor correction, a 150% overload reserve for 5 seconds, and output adjustable from 24 to 28 V DC, it offers flexible, dependable performance. Its parallel operation capability and available redundancy modules help you design scalable, cost‑efficient power for PLCs, drives, and control systems.
Product Information
Extended Description

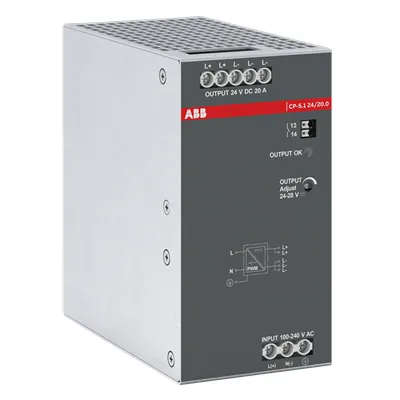

1SVR320761R1000 ABB: The CP-S.1 24/20.0 is a power supply from the new generation CP-S.1 range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-277 V DC, rated input voltage is 100-240 V AC, respectively 100-250 V DC. The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 150 % for 5 s and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
28 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-S.1 24/20.0 Primary switch mode power supply
Instructions and Manuals
Operating and installation instructions - CP-S.1 Primary switch mode power supplies
Wiring Diagram
9AKK107992A8774
Product Net Width
68 mm
Product Net Height
129.4 mm
Product Net Depth / Length
127 mm
Product Net Weight
1.355 kg
Package Level 1 Width
119 mm
Package Level 1 Depth / Length
158 mm
Package Level 1 Height
188 mm
Package Level 1 Gross Weight
1.6 kg
Package Level 1 EAN
4013614561122
Package Level 1 Units
box 1 piece
Package Level 2 Width
375 mm
Package Level 2 Depth / Length
495 mm
Package Level 2 Height
210 mm
Package Level 2 Gross Weight
15.7 kg
Package Level 2 Units
carton 9 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC | 100 ... 250 V DC
Input Voltage (Uin)
85 ... 264 V AC | 90 ... 277 V DC
Typical Input Current
(115 V AC) 4.85 A | (230 V AC) 2.55 A
Hold-up Time
(230 V AC) min. 20 ms
Rated Frequency (f)
50 / 60 Hz | DC
Rated Frequency Limits
45 ... 65 Hz
Characteristic of Output
U/I characteristic curve with power reserve
Rated Output Power
480 W
Output Power
480 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Output Current
20 A
Output Current Maximum (Iout)
30 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.8 kV | Output Circuit 0.8 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.5 ... 4.0 mm² | Flexible 0.5 ... 4.0 mm² | Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.5 ... 4.0 mm² | Flexible 0.5 ... 4.0 mm² | Rigid 0.5 ... 4 mm²
Tightening Torque
Input Circuit 0.5 N·m | Output Circuit 1.13 N·m
Wire Stripping Length
Auxiliary Circuit 7 mm | Input Circuit 9 mm | Output Circuit 9 mm
Minimum Mounting Distance
Other Device Same Type, Horizontal 30 mm | Other Device Same Type, Vertical 50 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 20-12 AWG | Flexible 20-12 AWG | Rigid 20-12 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible with Ferrule 20-12 AWG | Flexible 20-12 AWG | Rigid 20-12 AWG
Tightening Torque UL/CSA
Input Circuit 4.4 in·lb | Output Circuit 4.4 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Surge Immunity acc. to IEC 61000-4-5
Level 4 Line-to-Ground 4 kV | Level 4 Line-to-Line 2 kV
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
1SVD982043-0001
RoHS Status
Following EU Directive 2011/65/EU
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate - CP-S.1 24/20.0 Power supply unit
cULus Certificate
cULus61010-1_E174460 | cULus121201_E523399
Declaration of Conformity - CE
EU Declaration of Conformity - CP-S.1 Power supply units
Declaration of Conformity - UKCA
UK Declaration of Conformity - CP-S.1 Power supply units
DNV Certificate
DNV Certificate - CP-S.1 Power supply units
SEMI Certificate
9AKK108470A0206
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712889
E-Number (Norway)
6608903
E-Number (Sweden)
5213657
Wide input range and flexible output: The CP‑S.1 24/20.0 accepts 85-264 VAC or 90-277 VDC and delivers 24 V DC up to 20 A with an adjustable output from 24 to 28 V. This enables a single supply to cover regional mains differences and voltage drops in long runs, reducing the number of part variants in global installations and simplifying procurement. This also supports easier stocking for multinational deployments and faster panel design cycles. Power reserve and redundancy: The unit provides a 150% overload reserve for up to 5 seconds and can operate in parallel to increase capacity or enable redundancy. This translates into higher availability for critical automation loops and smoother failover during peak loads, minimizing unplanned downtime and reducing maintenance interventions in production lines. Protection, efficiency, and EMC: EN 61000-3-2 PF correction helps maintain power quality in noisy environments, while IP20 housing and EMC Class B immunity/emission reduce interference with PLCs and drives. These features minimize nuisance faults, simplify regulatory testing, and support compliant integration in mixed electrical environments. Installation and compatibility: Mounts on standard TH35 DIN rails with compact dimensions (68 mm width, 129.4 mm height) and a 1.355 kg weight. Flexible wiring and robust terminal connections support fast commissioning, while the 24–28 V output range accommodates short supply variations without board rework. Compliance and sustainability: UL/CSA listings, CB certificate, RoHS compliance, and DoC documentation support global deployment and responsible sourcing. These certifications lower procurement risk for multi-region projects and align with modern panel-building sustainability goals. Operational reliability: The combination of wide temperature range, high altitude capability, and shock/vibration resistance makes this unit well-suited for harsh industrial environments, enabling longer service life and predictable performance in demanding applications.
