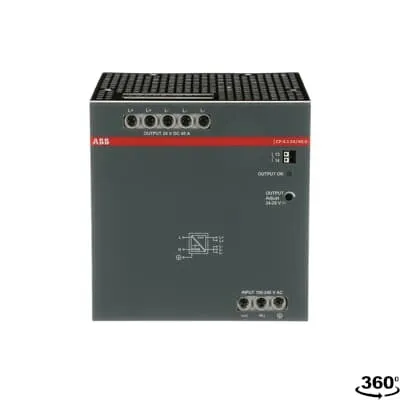

ABB 1SVR320861R1000 Power Supply - CE/UL/CB Certified
Part Number: 1SVR320861R1000
Quick Summary
ABB 1SVR320861R1000 Power Supply is a high-efficiency DC supply that delivers 960 W of stable 24 VDC for automation controllers and I/O panels. In busy plants, you need reliable power with fast fault isolation and easy maintenance. This unit is CE, UKCA, CB and cULus certified, with IP20 protection for indoor control panels, ensuring safe operation in demanding environments. Its DIN-rail form factor and parallel operation option help reduce downtime and lower total cost of ownership while supporting scalable automation architectures.
Product Information
Extended Description
1SVR320861R1000 ABB: The CP-S.1 24/40.0 is a power supply from the new generation CP-S.1 range. The primary switch mode power supply offers a wide range input of 99-264 V AC and 99-277 V DC, rated input voltage is 110-240 V AC, respectively 110-250 V DC. The rated output power is 960 W, rated output current is 40 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 150 % for 5 s and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-S.1 24/40.0 Primary switch mode power supply
Instructions and Manuals
Operating and installation instructions - CP-S.1 Primary switch mode power supplies
Wiring Diagram
9AKK107992A8774
Product Net Width
125 mm
Product Net Height
129.4 mm
Product Net Depth / Length
127 mm
Product Net Weight
2.49 kg
Package Level 1 Width
178 mm
Package Level 1 Depth / Length
168 mm
Package Level 1 Height
188 mm
Package Level 1 Gross Weight
2.86 kg
Package Level 1 EAN
4013614561139
Package Level 1 Units
box 1 piece
Package Level 2 Width
350 mm
Package Level 2 Depth / Length
555 mm
Package Level 2 Height
210 mm
Package Level 2 Gross Weight
18.5 kg
Package Level 2 Units
carton 6 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
110 ... 240 V AC | 110 ... 250 V DC
Input Voltage (Uin)
99 ... 264 V AC | 99 ... 277 V DC
Typical Input Current
(115 V AC) 9.5 A | (230 V AC) 5 A
Hold-up Time
(230 V AC) min. 20 ms
Rated Frequency (f)
50 / 60 Hz | DC
Rated Frequency Limits
45 ... 65 Hz
Characteristic of Output
U/I characteristic curve with power reserve
Output Power
960 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Output Current
40 A
Output Current Maximum (Iout)
60 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.8 kV | Output Circuit 0.8 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.5 ... 10.0 mm² | Flexible 0.5 ... 10.0 mm² | Rigid 0.5 ... 10.0 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.5 ... 10 mm² | Flexible 0.5 ... 10.0 mm² | Rigid 0.5 ... 10.0 mm²
Tightening Torque
2.8 N·m | Input Circuit 1.47 N·m | Output Circuit 1.47 N·m
Wire Stripping Length
Auxiliary Circuit 7 mm | Input Circuit 10 mm | Output Circuit 10 mm
Minimum Mounting Distance
Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 50 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 20-8 AWG | Flexible 20-8 AWG | Rigid 20-8 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible with Ferrule 20-8 AWG | Flexible 20-8 AWG | Rigid 20-8 AWG
Tightening Torque UL/CSA
Input Circuit 13 in·lb | Output Circuit 13 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Surge Immunity acc. to IEC 61000-4-5
Level 4 Line-to-Ground 4 kV | Level 4 Line-to-Line 2 kV
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
1SVD982043-0001
RoHS Status
Following EU Directive 2011/65/EU
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate - CP-S.1 24/40.0 Power supply unit
cULus Certificate
cULus61010-1_E174460 | cULus121201_E523399
Declaration of Conformity - CE
EU Declaration of Conformity - CP-S.1 Power supply units
Declaration of Conformity - UKCA
UK Declaration of Conformity - CP-S.1 Power supply units
DNV Certificate
DNV Certificate - CP-S.1 Power supply units
SEMI Certificate
9AKK108470A0207
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712890
E-Number (Norway)
6608904
E-Number (Sweden)
5213658
The CP-S.1 24/40.0 power supply features a wide input range and power factor correction, which reduces energy waste and improves overall system efficiency in mixed voltage plants. This translates to lower operating costs and less heat generation in panels, enabling more compact cabinet design and simplified cooling. The output is 24 V DC at up to 40 A with a 960 W rating, and it supports a U/I characteristic with a 150% power reserve for 5 seconds, guaranteeing tolerance during startup surges and transient loads in CNC machines or packaging lines. Parallel operation for redundancy increases uptime in critical lines, while the adjustable output (24–28 V) accommodates tolerances in multi-device racks. DIN-rail mounting (TH35-15 or TH35-7.5) ensures fast, secure installation and easy module replacement. The unit runs with PF correction per EN 61000-3-2, meeting modern energy standards and reducing compliance risk. With IP20 protection and rugged enclosure, it sustains normal operation in industrial environments, offering long service life and predictable performance. These features collectively deliver improved machine availability, reduced maintenance, and simplified panel design across manufacturing and process industries.
