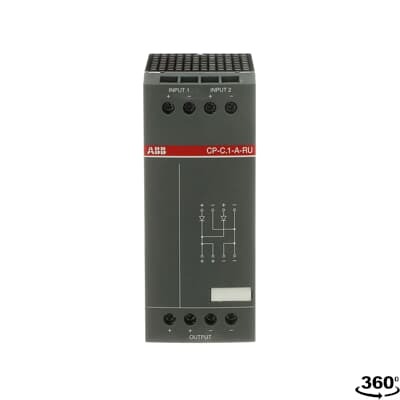

ABB 1SVR360060R1001 Redundancy Unit for Power Supplies - IP20
Part Number: 1SVR360060R1001
Quick Summary
ABB 1SVR360060R1001 Redundancy unit provides uninterrupted power for CP-C.1-A-RU and CP-S.1 power supplies in industrial control panels. Engineers often face downtime during supply faults or maintenance, risking production line performance and safety interlocks. The module delivers true redundancy by decoupling two parallel CP-C.1 range supplies, ensuring one channel can fail without interrupting critical loads. With CE and UKCA conformity, UL/cULus listings, and IP20 protection, it meets essential safety, EMC, and environmental requirements for harsh industrial environments. Its DIN-rail compatibility and compact footprint simplify integration into existing panels, while maintaining wire- and space-efficient layouts. This translates into improved MTBF, reduced spare-part inventories, and safer, more reliable automation outcomes.
Product Information
Extended Description
1SVR360060R1001 ABB: The CP-C.1-A-RU is a redundancy unit for CP-C.1 as well as CP-S.1 range power supplies. The input voltage range is 10 - 58 V DC. This unit, with 2 inputs / channels each up to 20 A and an output up to 40 A, provides true redundancy by 100 % decoupling of two parallel connected CP-C.1 range power supplies.
Country of Origin
China (CN)
Lead Time
60 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Minimum Order Quantity
1 piece
Customs Tariff Number
85044083
Data Sheet, Technical Information
Data sheet - CP-C.1-A-RU Redundancy unit
Instructions and Manuals
Operating and installation instructions - CP-C.1-A-RU Redundancy unit
Product Net Width
56.4 mm
Product Net Height
129.4 mm
Product Net Depth / Length
136 mm
Product Net Weight
1.04 kg
Package Level 1 Width
90 mm
Package Level 1 Depth / Length
155 mm
Package Level 1 Height
165 mm
Package Level 1 Gross Weight
1.17 kg
Package Level 1 EAN
4013614523816
Package Level 1 Units
box 1 piece
Function
Redundancy unit
Rated Input Voltage (UIN)
12 ... 48 V DC
Input Voltage (Uin)
10 ... 58 V DC
Rated Frequency (f)
DC
Rated Output Voltage
12 ... 48 V DC
Output Voltage (Uout)
10 ... 58 V DC
Rated Output Current
40 A
Output Current
60 A
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 60 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 2.5 ... 10 mm² | Flexible 2.5 ... 10 mm² | Rigid 2.5 ... 16 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 2.5 ... 10 mm² | Flexible 2.5 ... 10 mm² | Rigid 2.5 ... 16 mm²
Tightening Torque
Input Circuit 1.2 N·m | Output Circuit 1.2 N·m
Wire Stripping Length
Input Circuit 10 mm | Output Circuit 10 mm
Recommended Screw Driver
Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
Position 1 | 7
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
IEC/EN 63000 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 61204 | UL 61010-2-201 | UL 61010-1 | IEC/EN 61010-1
Connecting Capacity Input Circuit UL/CSA
Flexible 12-8 AWG | Rigid 12-6 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible 12-8 AWG | Rigid 12-6 AWG
Tightening Torque UL/CSA
Input Circuit 10.5 in·lb | Output Circuit 10.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate - CP-C.1-A-RU and CP-C.1-A-RU-C Redundancy units
CB Certificate
CB_DK_111623_UL
cULus Certificate
cULus508_20170703-E174460
cURus Certificate
cURus60950_E196145-A12-UL | cURusANSI-12-12_20170825_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-C.1-A-RU Redundancy unit
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-C.1-A-RU Redundancy unit
DNV GL Certificate
DNV GL Certificate - CP-C.1-A-RU and CP-C.1-A-RU-C Redundancy units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712550
E-Number (Norway)
6609498
E-Number (Sweden)
5213312
Two independent input channels up to 20 A each enable true 100 percent decoupling of two CP-C.1 range supplies, delivering a robust redundancy solution that minimizes downtime in critical automation loops. This feature translates to measurable uptime gains and reduced risk of cascading outages in machine control panels; ideal for DC-powered processes in manufacturing lines. The unit supports a wide input window of 10–58 V DC (with a rated input of 12–48 V DC) and an output capacity of up to 40 A (with peak capability to 60 A), ensuring compatibility with a broad range of CP-C.1 family power supplies and CP-S.1 modules. DIN rail mounting (TH35-15 / TH35-7.5) and a compact footprint streamline installation, saving panel space and labor costs. IP20 protection and sturdy construction address harsh factory environments, while certifications such as CE, UKCA, UL/cULus bolster regulatory compliance and risk management for panel builders. The design reduces spare-part inventories by providing a single, replaceable redundancy module that supports ongoing maintenance without interrupting critical loads. In practice, engineers gain faster MTTR, safer interlocks, and a clearer path to scalable, compliant automation architectures.
Get a Quick Quote for a ABB 1SVR360060R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR360060R1001?
Enquire Now
FAQs
Install on a standard TH35 DIN rail (TH35-15 or TH35-7.5) with a minimum mounting distance of 25 mm for proper ventilation. Connect two input channels (each up to 20 A) and the 60 A total load through the rated terminals. Use the recommended screwdriver (0.8 x 4 mm) and tighten to 1.2 N·m for both input and output circuits. Ensure 56.4 mm width and 129.4 mm height fit within the enclosure and maintain IP20 protection.
The unit accepts 10–58 V DC at input, with a rated input range of 12–48 V DC for optimal performance. Output is DC within 10–58 V, supporting a rated output current of 40 A and a maximum output current of 60 A. This wide range enables compatibility with CP-C.1 and CP-S.1 power supplies across diverse control panels.
Yes. It carries CE and UKCA conformity, plus UL/cULus listings, and features IP20 protection for housing and terminals. It is designed to operate over a wide temperature range and meets common EMC and safety standards, making it suitable for industrial automation environments where reliability is critical.
Ideal for control panels that rely on DC power from CP-C.1 family supplies, it provides true redundancy to prevent downtime from a single power-feed fault. Benefits include increased uptime, lower MTTR, reduced spare parts, and safer operation of critical loads in manufacturing lines. It also offers easy integration with CP-C.1 and CP-S.1 modules and supports scalable automation architectures.
Warranty terms state that the product under warranty must be returned if a fault occurs. Lead time is listed as 60 days, and the product is currently non-made-to-order, with other procurement considerations such as minimum order quantity of 1 piece. This information helps purchasers plan inventory and service windows for uptime-critical applications.
