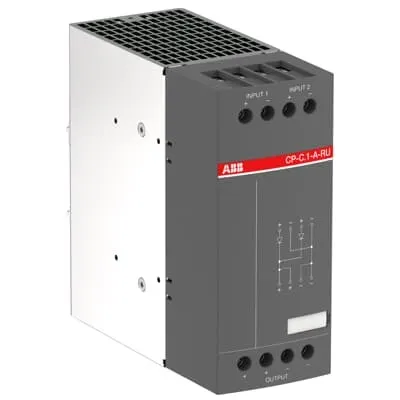

ABB 1SVR360060R2001 Redundancy unit - ATEX/IECEx
Part Number: 1SVR360060R2001
Quick Summary
The CP-C.1-A-RU-C redundancy unit is a true two-channel DC power backup for CP-C.1 modules. Engineers often struggle with downtime and unplanned outages when power paths fail, risking process stability and equipment damage. This module carries ATEX and IECEx approvals for hazardous-area use, as well as CE and UL/CSA listings, supporting global compliance. By providing true 100% decoupling of two parallel CP-C.1 supplies, it minimizes cross‑talk and single-point failures. Mounted on a standard DIN rail, it simplifies panel design and serviceability. With robust environmental specs and a wide input range, the CP-C.1-A-RU-C delivers reliable, long-term power integrity for critical processes and downtime-sensitive applications.
Product Information
Extended Description
1SVR360060R2001 ABB: The CP-C.1-A-RU-C is a redundancy unit for CP-C.1 range power supplies. The input voltage range is 10 - 58 V DC. This unit, with 2 inputs / channels each up to 20 A and an output up to 40 A, provides true redundancy by 100 % decoupling of two parallel connected CP-C.1 range power supplies. ATEX and IECEx approvals are available to be used in hazardous area applications.
Minimum Order Quantity
1 piece
Customs Tariff Number
85044083
Data Sheet, Technical Information
Data sheet - CP-C.1-A-RU Redundancy unit
Instructions and Manuals
Operating and installation instructions - CP-C.1-A-RU Redundancy unit
Instructions and Manuals (Part 2)
Additional information and notes on safety ATEX - CP-C.1-C Primary switch mode power supplies and CP-C.1-A-RU-C redundancy unit
Ex Operating Instructions
Additional information and notes on safety ATEX - CP-C.1-C Primary switch mode power supplies and CP-C.1-A-RU-C redundancy unit
Product Net Width
56.4 mm
Product Net Height
129.4 mm
Product Net Depth / Length
136 mm
Product Net Weight
1.04 kg
Package Level 1 Width
90 mm
Package Level 1 Depth / Length
155 mm
Package Level 1 Height
165 mm
Package Level 1 Gross Weight
1.17 kg
Package Level 1 EAN
4013614523748
Package Level 1 Units
box 1 piece
Function
Redundancy unit
Rated Input Voltage (UIN)
12 ... 48 V DC
Input Voltage (Uin)
10 ... 58 V DC
Rated Frequency (f)
DC
Rated Output Voltage
12 ... 48 V DC
Output Voltage (Uout)
10 ... 58 V DC
Rated Output Current
40 A
Output Current
60 A
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 60 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 2.5 ... 10 mm² | Flexible 2.5 ... 10 mm² | Rigid 2.5 ... 16 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 2.5 ... 10 mm² | Flexible 2.5 ... 10 mm² | Rigid 2.5 ... 16 mm²
Tightening Torque
Input Circuit 1.2 N·m | Output Circuit 1.2 N·m
Wire Stripping Length
Input Circuit 10 mm | Output Circuit 10 mm
Recommended Screw Driver
Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
Position 1 | 7
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
IEC/EN 63000 | IEC/EN 60079-0 | IEC/EN 60079-7 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 61204 | UL 61010-2-201 | UL 61010-1 | IEC/EN 61010-1
Connecting Capacity Input Circuit UL/CSA
Flexible 12-8 AWG | Rigid 12-6 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible 12-8 AWG | Rigid 12-6 AWG
Tightening Torque UL/CSA
Input Circuit 10.5 in·lb | Output Circuit 10.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate - CP-C.1-A-RU and CP-C.1-A-RU-C Redundancy units
ATEX Certificate
Type Examination Certificate_DEMKO_16_ATEX_1746X
CB Certificate
CB_DK_111623_UL
cULus Certificate
cULus508_20170703-E174460
cURus Certificate
cURus60950_E196145-A12-UL | cURusANSI-12-12_20170825_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-C.1-A-RU-C Redundancy unit
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-C.1-A-RU-C Redundancy unit
DNV GL Certificate
DNV GL Certificate - CP-C.1-A-RU and CP-C.1-A-RU-C Redundancy units
IECEx Certificate
IECEx_ULD_170031X
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712559
Feature: Two-input channels, each up to 20 A, with 100% decoupling providing genuine redundancy. Business impact: dramatically reduces the risk of simultaneous failure and unplanned downtime, increasing equipment availability in manufacturing cells. Application: automation panels requiring high-uptime DC power for CP-C.1 power supplies. Long-tail keywords: redundant DC power supply, two-channel redundancy, CP-C.1 compatibility. Feature: Wide input and identical DC output range (10-58 V DC input; 10-58 V DC output; rated input 12-48 V DC). Business impact: simplifies installation across diverse supply rails and reduces inventory complexity. Application: control cabinets in factories with variable DC rails. Long-tail keywords: flexible DC power input, universal DC output, panel power supply compatibility. Feature: Certifications for global deployment (ATEX, IECEx, CE, UL/CSA, CB). Business impact: streamlines cross-border approvals and lowers time-to-market for hazardous-area systems. Application: mining, process industries, and general automation panels requiring certified power redundancy. Long-tail keywords: hazardous-area power module, ATEX certified redundancy, CE UL listings. Feature: DIN rail mounting (TH35-15/TH35-7.5) with compact footprint (56.4 mm W, 129.4 mm H, 136 mm D) and IP20 protection. Business impact: easy integration into existing enclosures with predictable thermal and space planning. Application: compact automation layouts and cabinet retrofits. Long-tail keywords: DIN rail power module, IP20 DC redundancy, compact control panel upgrade. Feature: Robust electrical and environmental specs (Output up to 60 A, Ui 60 V, -40 to +70 °C operation, up to 5000 m altitude). Business impact: ensures reliability in harsh environments and high-altitude sites, reducing field service costs. Application: outdoor or industrial facilities with demanding climates. Long-tail keywords: high-temperature DC power, rugged industrial module, high-altitude electronics.
Get a Quick Quote for a ABB 1SVR360060R2001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR360060R2001?
Enquire Now
FAQs
Install on standard TH35 DIN rails (TH35-15 or TH35-7.5) with a 25 mm minimum mounting clearance. Use 2.5–16 mm² conductors per input and output, tighten to 1.2 N·m, and follow the CP-C.1 installation instructions for proper decoupling in two-channel configurations. The unit supports easy panel integration and fast field replacement.
Input voltage range is 10–58 V DC (rated input 12–48 V DC), with two input channels up to 20 A each. Output voltage range is 10–58 V DC, rated output current 40 A and maximum output current 60 A. Insulation voltage is 60 V, and the enclosure is IP20. The device is designed for DC redundancy with true decoupling of parallel CP-C.1 supplies.
Yes. The module carries ATEX and IECEx approvals for hazardous-area use, along with CE and UL/CSA certifications, enabling safe deployment in zones where explosive atmospheres may occur. This reduces certification time for industrial installations and supports global compliance for process automation projects.
The unit provides true redundancy with 100% decoupling, reducing downtime and protecting critical processes. It supports DIN-rail integration, simplifies panel design, and minimizes spare-part diversity thanks to wide input compatibility. Certifications (ATEX/IECEx, CE, UL/CSA) ease international deployments, lowering total cost of ownership over the system life cycle.
Expect improved uptime and reduced unplanned outages, which translate to higher production efficiency and lower maintenance costs. The rugged design supports harsh environments and high-altitude operation, reducing field service intervals. Overall, the redundancy unit lowers risk, shortens mean time to repair, and extends the life of CP-C.1 power supplies in demanding industrial settings.
