ABB 1SVR360563R2001 Power Supply - ATEX/IECEx Certified
Part Number: 1SVR360563R2001
Quick Summary
ABB 1SVR360563R2001 power supply delivers 24 VDC power for industrial automation panels. Engineered to reduce downtime from supply failures, it handles wide input ranges and supports parallel operation for redundancy. The solution carries ATEX and IECEx approvals for hazardous areas, along with CE and UKCA declarations for global compliance. Designed as a compact, DIN-rail-ready switch-mode power supply, it integrates easily into control panels and large-scale automation architectures.
Product Information
Extended Description

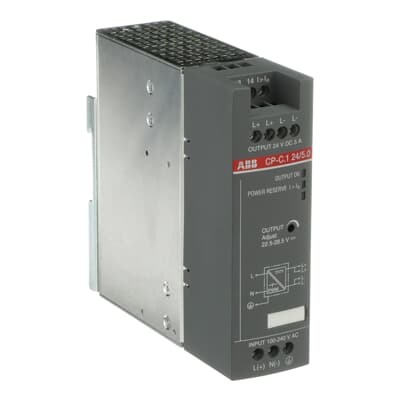

1SVR360563R2001 ABB: The CP-C.1 24/5.0-C is a power supply from the CP-C.1 range with coated PCBA. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC. The rated output power is 120 W, rated output current is 5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 50 % and allows parallel operation to increase capacity and to enable redundancy. ATEX and IECEx approvals are available to be used in hazardous area applications. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-C.1 24/5.0 Primary switch mode power supply
Instructions and Manuals
Operating and installation instructions - CP-C.1 Primary switch mode power supplies
Ex Operating Instructions
Additional information and notes on safety ATEX - CP-C.1-C Primary switch mode power supplies and CP-C.1-A-RU-C redundancy unit
Product Net Width
40 mm
Product Net Height
129.4 mm
Product Net Depth / Length
136 mm
Product Net Weight
0.75 kg
Package Level 1 Width
70 mm
Package Level 1 Depth / Length
168 mm
Package Level 1 Height
160 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614503849
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC | 90 ... 300 V DC
Input Voltage (Uin)
85 ... 264 V AC | 90 ... 300 V DC
Typical Input Current
(115 V AC) 1.1 A | (230 V AC) 0.6 A
Hold-up Time
(230 V AC) min. 50 ms
Rated Frequency (f)
50 / 60 Hz
Rated Frequency Limits
45 ... 65 Hz
Characteristic of Output
U/I characteristic curve with power reserve
Rated Output Power
120 W
Output Power
120 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
-25 °C ... +60 °C 5 A | -40 °C ... +40 °C 7.5 A
Output Current
5 A
Output Current Maximum (Iout)
7.5 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV | Output Circuit 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.5 ... 2.5 mm² | Flexible 0.5 ... 2.5 mm² | Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.5 ... 2.5 mm² | Flexible 0.5 ... 2.5 mm² | Rigid 0.5 ... 4 mm²
Tightening Torque
Auxiliary Circuit 0.5 N·m | Input Circuit 0.5 N·m | Output Circuit 0.5 N·m
Wire Stripping Length
Auxiliary Circuit 8 mm | Input Circuit 8 mm | Output Circuit 8 mm
Recommended Screw Driver
Input Circuit / Output Circuit PH1 | Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
Position 1 | 7
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | IEC/EN 63000 | IEC/EN 60079-0 | IEC/EN 60079-15 | IEC/EN 60079-7 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 61204 | UL 508 | UL 61010-1 | UL 61010-2-201 | IEC/EN 61010-1
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 20-12 AWG | Flexible 20-12 AWG | Rigid 20-10 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible 20-12 AWG | Rigid 20-10 AWG
Tightening Torque UL/CSA
Input Circuit 4.4 in·lb | Output Circuit 4.4 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 4 Line-to-Ground 4 kV | Level 4 Line-to-Line 2 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate - CP-C.1 Power supply units
ATEX Certificate
Type Examination Certificate_DEMKO_16_ATEX_1746X
CB Certificate
CB_DK_103485_UL
cULus Certificate
cULus508_20151021-E174460
cURus Certificate
cURus60950_E196145-A10-UL | cURusANSI-12-12_20160629_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-C.1-C Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-C.1-C Power supply units
DNV GL Certificate
DNV GL Certificate - CP-C.1 Power supply units
IECEx Certificate
IECEx_ULD_170031X
SEMI Certificate
SEMI_F47_4787851718
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712543
E-Number (Norway)
6609412
Feature → Business Impact → Application: The CP-C.1 24/5.0-C offers a wide input range and a 24 V DC, 5 A output, enabling stable operation across 100-240 V AC or 90-300 V DC without intermediate regulation, which reduces panel redesigns and maintenance costs during site upgrades. This translates to fewer outages during power transients and a smoother start-up sequence for machine lines in manufacturing facilities. Application: ideal for distributed control systems and motor drives where reliable 24 V DC power is critical for PLCs, IO modules, and safety relays. Feature → Business Impact → Application: Parallel operation and power reserve up to 50% allow easy scaling and redundancy in critical applications, eliminating single-point failures and enabling hot-swappable upgrades. Application: hazardous-area control panels and safety circuits benefit from seamless capacity expansion without downtime. Feature → Business Impact → Application: Coated PCBA and IP20-rated housing improve moisture and dust resilience, reducing field repairs and replacement cycles in dirty industrial environments. Application: outdoor cabinets or wash-down areas where reliability matters. Feature → Business Impact → Application: Wide output adjustability from 22.5 to 28.5 V DC supports fine-tuning for different field devices and LED drivers. Application: common in process control loops and instrumentation where precise voltage control reduces drift and calibration needs. Feature → Business Impact → Application: EN 61000-3-2 power factor correction improves energy efficiency and reduces utility penalties in large installations. Application: factory floors or data-center-like automation rooms with high harmonic content. Feature → Business Impact → Application: DIN rail mounting TH35 compatibility and compact footprint simplify installation and retrofit projects. Application: retrofits in existing ABB and third-party panels with limited space.
