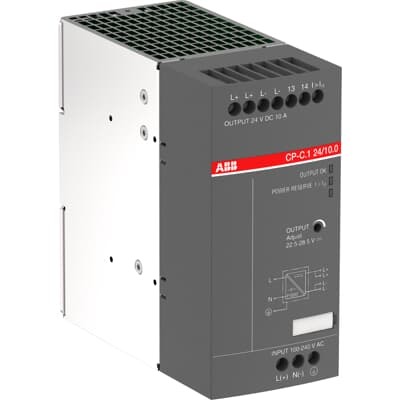

ABB 1SVR360663R2001 Power Supply - ATEX/IECEx Certified
Part Number: 1SVR360663R2001
Quick Summary
ABB 1SVR360663R2001 power supply provides clean 24 V DC for industrial control panels and machinery. Many users struggle with varying input voltages and the need for reliable redundancy in mission-critical systems. It carries ATEX and IECEx approvals for hazardous areas, along with CE and UL/CSA certifications to support global deployment. Designed for DIN rail mounting with a coated PCBA, this 240 W unit offers a wide input range and an adjustable output from 22.5 to 28.5 V DC, enabling parallel operation for capacity growth or redundancy. With a robust safety profile and easy installation, it translates to higher uptime, simplified compliance, and scalable power for automation and safety-critical applications.
Product Information
Extended Description
1SVR360663R2001 ABB: The CP-C.1 24/10.0-C is a power supply from the CP-C.1 range with coated PCBA. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC. The rated output power is 240 W, rated output current is 10 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 50 % and allows parallel operation to increase capacity and to enable redundancy. ATEX and IECEx approvals are available to be used in hazardous area applications. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-C.1 24/10.0 Primary switch mode power supply
Instructions and Manuals
Operating and installation instructions - CP-C.1 Primary switch mode power supplies
Ex Operating Instructions
Additional information and notes on safety ATEX - CP-C.1-C Primary switch mode power supplies and CP-C.1-A-RU-C redundancy unit
Product Net Width
60 mm
Product Net Height
129.4 mm
Product Net Depth / Length
136 mm
Product Net Weight
1.09 kg
Package Level 1 Width
90 mm
Package Level 1 Depth / Length
168 mm
Package Level 1 Height
160 mm
Package Level 1 Gross Weight
1.24 kg
Package Level 1 EAN
4013614503856
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC | 90 ... 300 V DC
Input Voltage (Uin)
85 ... 264 V AC | 90 ... 300 V DC
Typical Input Current
(115 V AC) 2.3 A | (230 V AC) 1.2 A
Hold-up Time
(230 V AC) min. 40 ms
Rated Frequency (f)
50 / 60 Hz
Rated Frequency Limits
45 ... 65 Hz
Characteristic of Output
U/I characteristic curve with power reserve
Rated Output Power
240 W
Output Power
240 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
-25 °C ... +60 °C 10 A | -40 °C ... +40 °C 15 A
Output Current
10 A
Output Current Maximum (Iout)
15 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV | Output Circuit 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.5 ... 2.5 mm² | Flexible 0.5 ... 2.5 mm² | Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.5 ... 2.5 mm² | Flexible 0.5 ... 2.5 mm² | Rigid 0.5 ... 4 mm²
Tightening Torque
Auxiliary Circuit 0.5 N·m | Input Circuit 0.5 N·m | Output Circuit 0.5 N·m
Wire Stripping Length
Auxiliary Circuit 8 mm | Input Circuit 8 mm | Output Circuit 8 mm
Recommended Screw Driver
Input Circuit / Output Circuit PH1 | Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
Position 1 | 7
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | IEC/EN 63000 | IEC/EN 60079-0 | IEC/EN 60079-15 | IEC/EN 60079-7 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 61204 | UL 508 | UL 61010-1 | UL 61010-2-201 | IEC/EN 61010-1
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 20-12 AWG | Flexible 20-12 AWG | Rigid 20-10 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible 20-12 AWG | Rigid 20-10 AWG
Tightening Torque UL/CSA
Input Circuit 4.4 in·lb | Output Circuit 4.4 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 4 Line-to-Ground 4 kV | Level 4 Line-to-Line 2 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate - CP-C.1 Power supply units
ATEX Certificate
Type Examination Certificate_DEMKO_16_ATEX_1746X
CB Certificate
CB_DK_106053_A2_UL
cULus Certificate
cULus508_20150522-E174460
cURus Certificate
cURus60950_E196145-A9-UL | cURusANSI-12-12_20160916_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-C.1-C Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-C.1-C Power supply units
DNV GL Certificate
DNV GL Certificate - CP-C.1 Power supply units
IECEx Certificate
IECEx_ULD_170031X
SEMI Certificate
SEMI_F47_4787681819-1
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712544
E-Number (Norway)
6609413
Feature wide input range and adjustable output → Business Impact reduces the need for multiple power supplies and simplifies panel design → Application in automation cabinets with fluctuating mains and variable loads. Feature 240 W rated output at 24 V DC and 10 A continuous capability → Business Impact supports PLCs, actuators, and I/O blocks with headroom for transient spikes → Application in control panels requiring reliable, steady DC supply. Feature U/I characteristic with 50% power reserve and parallel operation capability → Business Impact enables redundancy and load sharing to improve uptime and system resilience → Application in safety-critical automation where uninterrupted power is essential. Feature ATEX/IECEx approvals along with CE/UL certifications → Business Impact ensures regulatory compliance across global sites → Application in hazardous-area environments like chemical plants and oil and gas facilities. Feature coated PCBA, IP20 housing, and wide operating range −40 to +70 °C → Business Impact enhances reliability in harsh environments and reduces maintenance calls → Application in outdoor or dusty industrial settings where environmental protection matters. Feature DIN rail mounting compatibility and easy installation with standard tools → Business Impact accelerates deployment and reduces installation time → Application in new builds and retrofits in existing control panels.
Get a Quick Quote for a ABB 1SVR360663R2001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR360663R2001?
Enquire Now
FAQs
This unit supports a wide input range of 85-264 VAC and 90-300 VDC, with a rated 110-240 VAC range for common industrial mains, enabling versatile installation across multiple regions.
The power supply provides 24 V DC with a continuous 10 A output and up to 15 A peak, delivering up to 240 W of output power. Output is adjustable from 22.5 to 28.5 V DC.
Yes. It carries ATEX and IECEx approvals for hazardous areas and also holds CE and UL/CSA certifications to support global deployment in safety-critical applications.
Yes. The CP-C.1 family supports parallel operation and redundancy configurations, allowing increased capacity and improved uptime for critical automation systems.
It is designed for DIN rail mounting with a coated PCBA, IP20 protection, and operation from −40 to +70 °C, providing reliable performance in harsh industrial environments and simplifying installation.
