ABB 1SVR360763R1001 Power Supply - UL 508 / CE Certified
Part Number: 1SVR360763R1001
Quick Summary

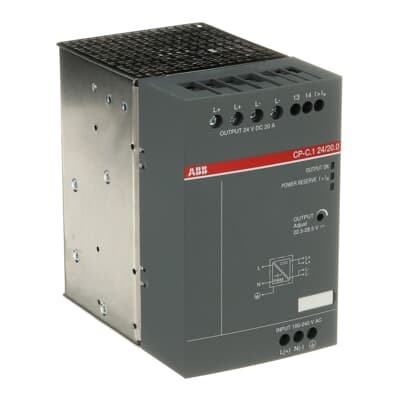

ABB CP-C.1 24/20 power supply powers 24 VDC control circuits in industrial automation environments. This unit addresses common panel space and uptime challenges by delivering a compact, single‑phase source with robust performance. It carries essential certifications such as CE, UL/CSA, and UKCA, together with RoHS/REACH compliance to support compliant deployments across global facilities. The design supports DIN rail mounting, parallel operation for redundancy, and a configurable output, enabling scalable solutions for machine builders and system integrators. With a broad input range and a 480 W rating, it helps reduce wiring complexity while improving overall system reliability and energy efficiency.
Product Information
Extended Description
1SVR360763R1001 ABB: The CP-C.1 24/20.0 is a power supply from the CP-C.1 range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC. The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 30 % and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories
Country of Origin
China (CN)
Lead Time
95 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-C.1 24/20.0 Primary switch mode power supply
Instructions and Manuals
Operating and installation instructions - CP-C.1 Primary switch mode power supplies
Product Net Width
82 mm
Product Net Height
129.4 mm
Product Net Depth / Length
136 mm
Product Net Weight
1.57 kg
Package Level 1 Width
110 mm
Package Level 1 Depth / Length
168 mm
Package Level 1 Height
160 mm
Package Level 1 Gross Weight
1.7 kg
Package Level 1 EAN
4013614503832
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC | 90 ... 300 V DC
Input Voltage (Uin)
85 ... 264 V AC | 90 ... 300 V DC
Typical Input Current
(115 V AC) 4.6 A | (230 V AC) 2.3 A
Hold-up Time
(230 V AC) min. 40 ms
Rated Frequency (f)
50 / 60 Hz
Rated Frequency Limits
45 ... 65 Hz
Characteristic of Output
U/I characteristic curve with power reserve
Rated Output Power
480 W
Output Power
480 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
-25 °C ... +40 °C 26 A | -25 °C ... +60 °C 20 A
Output Current
20 A
Output Current Maximum (Iout)
26 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV | Output Circuit 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.5 ... 2.5 mm² | Flexible 0.5 ... 2.5 mm² | Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 2.5 ... 10 mm² | Flexible 2.5 ... 10 mm² | Rigid 2.5 ... 16 mm²
Tightening Torque
Auxiliary Circuit 0.5 N·m | Input Circuit 0.5 N·m | Output Circuit 1.2 N·m
Wire Stripping Length
Auxiliary Circuit 8 mm | Input Circuit 8 mm | Output Circuit 10 mm
Recommended Screw Driver
Input Circuit / Output Circuit PH1 | Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
Position 1 | 7
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | IEC/EN 63000 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 61204 | UL 508 | IEC/EN 61010-1 | UL 61010-1 | UL 61010-2-201
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 20-12 AWG | Flexible 20-12 AWG | Rigid 20-10 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible 12-8 AWG | Rigid 12-6 AWG
Tightening Torque UL/CSA
Input Circuit 4.4 in·lb | Output Circuit 10.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 4 Line-to-Ground 4 kV | Level 4 Line-to-Line 2 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate - CP-C.1 Power supply units
CB Certificate
CB_DK_103862_A2_UL
cULus Certificate
cULus508_20161102-E174460
cURus Certificate
cURus60950_E196145-A11-UL | cURusANSI-12-12_20161122_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-C.1 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-C.1-C Power supply units
DNV GL Certificate
DNV GL Certificate - CP-C.1 Power supply units
SEMI Certificate
SEMI_F47_4787681819-2
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712542
E-Number (Norway)
6609455
E-Number (Sweden)
5213181
Feature → Business Impact → Application: The CP-C.1 24/20 provides a wide input window of 85-264 VAC or 90-300 VDC, allowing seamless operation from diverse mains without multiple adapters. This reduces installation time and inventory needs on factory floors, particularly in multinational plants. Application: control panels and machine cabinets with mixed supply sources. Feature → Business Impact → Application: The unit delivers 24 V DC at up to 20 A (up to 26 A peak) with an adjustable output between 22.5 and 28.5 V, enabling precise voltage tuning for sensitive I/O modules and motor drivers. Application: PLCs, I/O modules, and servo drives requiring stable DC rails. Feature → Business Impact → Application: A 480 W rated output and a U/I power‑reserve characteristic support parallel operation, enabling capacity expansion and system redundancy without adding extra devices. Application: scalable power for evolving automation lines. Feature → Business Impact → Application: Power factor correction per EN 61000-3-2 improves energy efficiency and reduces harmonic distortion, beneficial for equipment fleets with strict EMC/utility requirements. Application: energy-conscious factories and OEM installations. Feature → Business Impact → Application: Redundancy accessories and buffer modules are available, simplifying uptime strategies and maintenance planning. Application: critical systems such as packaging lines and robotics cells. Feature → Business Impact → Application: IP20 housing and mounting on standard TH35 DIN rails offer straightforward installation in common control cabinets, saving space and boosting serviceability. Application: DIN rail mounted power rails in panel builders’ assemblies. Feature → Business Impact → Application: -25 °C to +70 °C operating range and up to 5000 m altitude support harsh industrial environments, increasing field reliability. Application: outdoor or high‑altitude manufacturing sites (where environmental control is limited). Feature → Business Impact → Application: Wide certifications including CE, UKCA, UL/CSA, UL 508, and CB support compliance across multiple regions, reducing certification lead times for global deployments. Application: multinational equipment manufacturers and integrators.
