ABB 1SVR360763R2001 Power Supply - ATEX/IECEx Cert
Part Number: 1SVR360763R2001
Quick Summary

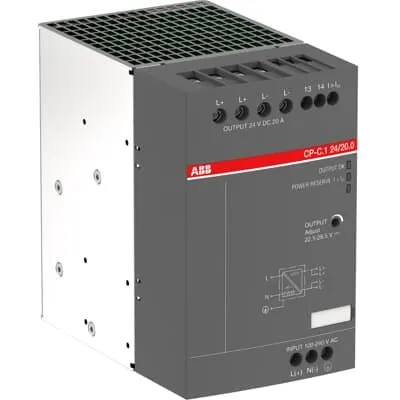

ABB CP-C.1 24/20.0-C power supply is a compact 24 V DC, 20 A source built for rugged automation environments. Engineers often wrestle with gear that can't handle wide input ranges, temperature extremes, or reliable redundancy. The CP-C.1 family offers ATEX and IECEx approvals for hazardous areas, CE conformity, and UL/CSA listings to support global projects. With parallel operation and a coated PCBA, it translates to lower total cost of ownership and smoother integration into DIN-rail systems. This combination delivers reliable power, improves uptime, and reduces spare parts and maintenance costs. It's optimized for manufacturing, packaging, and process control environments where quick deployment and safety matter.
Product Information
Extended Description
1SVR360763R2001 ABB: The CP-C.1 24/20.0-C is a power supply from the CP-C.1 range with coated PCBA. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC. The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 30 % and allows parallel operation to increase capacity and to enable redundancy. ATEX and IECEx approvals are available to be used in hazardous area applications. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-C.1 24/20.0 Primary switch mode power supply
Instructions and Manuals
Operating and installation instructions - CP-C.1 Primary switch mode power supplies
Ex Operating Instructions
Additional information and notes on safety ATEX - CP-C.1-C Primary switch mode power supplies and CP-C.1-A-RU-C redundancy unit
Product Net Width
82 mm
Product Net Height
129.4 mm
Product Net Depth / Length
136 mm
Product Net Weight
1.59 kg
Package Level 1 Width
110 mm
Package Level 1 Depth / Length
168 mm
Package Level 1 Height
160 mm
Package Level 1 Gross Weight
1.72 kg
Package Level 1 EAN
4013614503863
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC | 90 ... 300 V DC
Input Voltage (Uin)
85 ... 264 V AC | 90 ... 300 V DC
Typical Input Current
(115 V AC) 4.6 A | (230 V AC) 2.3 A
Hold-up Time
(230 V AC) min. 40 ms
Rated Frequency (f)
50 / 60 Hz
Rated Frequency Limits
45 ... 65 Hz
Characteristic of Output
U/I characteristic curve with power reserve
Rated Output Power
480 W
Output Power
480 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
-25 °C ... +60 °C 20 A | -40 °C ... +40 °C 26 A
Output Current
20 A
Output Current Maximum (Iout)
26 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV | Output Circuit 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.5 ... 2.5 mm² | Flexible 0.5 ... 2.5 mm² | Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 2.5 ... 10 mm² | Flexible 2.5 ... 10 mm² | Rigid 2.5 ... 16 mm²
Tightening Torque
Auxiliary Circuit 0.5 N·m | Input Circuit 0.5 N·m | Output Circuit 1.2 N·m
Wire Stripping Length
Auxiliary Circuit 8 mm | Input Circuit 8 mm | Output Circuit 10 mm
Recommended Screw Driver
Input Circuit / Output Circuit PH1 | Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
Position 1 | 7
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | IEC/EN 63000 | IEC/EN 60079-0 | IEC/EN 60079-15 | IEC/EN 60079-7 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 61204 | UL 508 | UL 61010-1 | UL 61010-2-201 | IEC/EN 61010-1
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 20-12 AWG | Flexible 20-12 AWG | Rigid 20-10 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible 12-8 AWG | Rigid 12-6 AWG
Tightening Torque UL/CSA
Input Circuit 4.4 in·lb | Output Circuit 10.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 4 Line-to-Ground 4 kV | Level 4 Line-to-Line 2 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate - CP-C.1 Power supply units
ATEX Certificate
Type Examination Certificate_DEMKO_16_ATEX_1746X
CB Certificate
CB_DK_103862_A2_UL
cULus Certificate
cULus508_20161102-E174460
cURus Certificate
cURus60950_E196145-A11-UL | cURusANSI-12-12_20161122_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-C.1-C Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-C.1-C Power supply units
DNV GL Certificate
DNV GL Certificate - CP-C.1 Power supply units
IECEx Certificate
IECEx_ULD_170031X
SEMI Certificate
SEMI_F47_4787681819-2
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712545
E-Number (Norway)
6609433
The CP-C.1 24/20.0-C uses a single-phase switch-mode design with an input range of 85-264 VAC or 90-300 VDC and a rated output of 480 W at 24 V DC. That wide input tolerance reduces the number of SKUs and simplifies procurement for multi-site factories, while the 20 A maximum output supports standard PLC and drive loads. With a U/I output characteristic and up to 30% power reserve, the supply maintains regulation during transient loads and allows safe paralleling to increase capacity. Parallel operation options and a redundancy module enable fault-tolerant configurations in critical lines, reducing downtime risk. Coated PCBA enhances reliability in dusty, humid, or chemically exposed environments, extending service life in challenging plants. Operating from -40 to +70 °C and rated IP20 protection ensure dependable performance on the factory floor, even with occasional line surges. EMC immunity and emission performance meet stringent industry standards, including IEC 61000-6-2 and 61000-6-3, with ESD, bursts, and surge specs designed for noisy environments. UL/CSA, CE, CB, and CAN/CSA certifications further streamline global approvals and installation. Compact dimensions—82 mm wide, 129.4 mm high, 136 mm deep—with DIN-rail mounting options simplify cabinet layouts. Flexible connection options for input and output cables (0.5-2.5 mm² input; 2.5-16 mm² output) support clean, secure wiring in control panels. Across industries such as process automation and packaging, the CP-C.1 line’s coatings, certifications, and redundancy features reduce maintenance costs and ensure regulatory compliance, delivering predictable ROI over the equipment lifecycle.
Get a Quick Quote for a ABB 1SVR360763R2001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR360763R2001?
Enquire Now
FAQs
Install the unit on a TH35 DIN rail (TH35-15 or TH35-7.5). Use suitable terminal sizes (input 0.5–4 mm², output 2.5–16 mm²) and torque the terminals to the recommended values to ensure good contact. The compact 82 mm x 129.4 mm x 136 mm footprint and IP20 housing simplify layout planning and wiring.
Rated input 100-240 VAC or 90-300 VDC with a typical input current of 4.6 A at 115 VAC or 2.3 A at 230 VAC. Output is 24 V DC at 20 A (480 W) with adjustable output 22.5–28.5 V DC and a 30% power reserve. It supports parallel operation and provides a min hold-up of about 40 ms at 230 VAC.
Yes. The CP-C.1 family offers ATEX and IECEx approvals for hazardous areas, enabling use in potentially explosive environments when installed with the appropriate certified variants (CP-C.1-C or CP-C.1-A-RU-C as applicable).
The unit carries CE conformity, UL 508 and UL 61010-1/2-201 certifications, CAN/CSA, CB certification, RoHS and REACH declarations, and WEEE guidance, facilitating worldwide installation and regulatory compliance.
Redundancy options and a 30% reserve reduce downtime risk, while the coated PCBA and wide temperature operating range lower preventive maintenance needs. Global approvals simplify procurement, stocking, and service across multi-site manufacturing environments.
