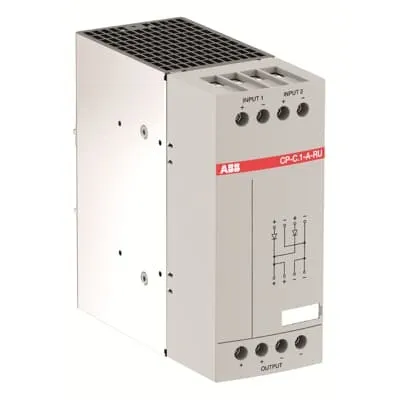

ABB 1SVR361060R1001 Redundancy Unit - CE/UL certified
Part Number: 1SVR361060R1001
Quick Summary
ABB 1SVR361060R1001 Redundancy Unit ensures fault-tolerant power for CP-C.1 and CP-S.1 DC supplies in industrial automation. Engineers often confront downtime when a single supply fails, risking production timelines; this module provides true redundancy by fully decoupling two parallel CP-C.1 sources. It carries CE and UKCA declarations, along with UL/CSA and ABS certificates, underscoring safety and regulatory readiness for global operations. With a compact footprint and DIN-rail compatibility, it simplifies panel design and maintenance. The solution aligns with common DC power architectures, helping OEMs improve uptime, reduce service interruptions, and simplify compliance audits in manufacturing environments.
Product Information
Extended Description
1SVR361060R1001 ABB: The CP-C.1-A-RU-L (light-grey variant) is a redundancy unit for CP-C.1 as well as CP-S.1 range power supplies. The input voltage range is 10 - 58 V DC. This unit, with 2 inputs / channels each up to 20 A and an output up to 40 A, provides true redundancy by 100 % decoupling of two parallel connected CP-C.1 range power supplies.
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-C.1-A-RU Redundancy unit
Instructions and Manuals
Operating and installation instructions - CP-C.1-A-RU Redundancy unit
Product Net Width
56.4 mm
Product Net Height
129.4 mm
Product Net Depth / Length
136 mm
Product Net Weight
1.04 kg
Package Level 1 Width
90 mm
Package Level 1 Depth / Length
155 mm
Package Level 1 Height
165 mm
Package Level 1 Gross Weight
1.17 kg
Package Level 1 EAN
4053546028140
Package Level 1 Units
box 1 piece
Function
Redundancy unit
Rated Input Voltage (UIN)
12 ... 48 V DC
Input Voltage (Uin)
10 ... 58 V DC
Rated Frequency (f)
DC
Rated Output Voltage
12 ... 48 V DC
Output Voltage (Uout)
10 ... 58 V DC
Rated Output Current
40 A
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 60 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 2.5 ... 10 mm² | Flexible 2.5 ... 10 mm² | Rigid 2.5 ... 16 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 2.5 ... 10 mm² | Flexible 2.5 ... 10 mm² | Rigid 2.5 ... 16 mm²
Tightening Torque
Input Circuit 1.2 N·m | Output Circuit 1.2 N·m
Wire Stripping Length
Input Circuit 10 mm | Output Circuit 10 mm
Recommended Screw Driver
Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
Position 1 | 7
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
IEC/EN 63000 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 61204 | UL 61010-2-201 | UL 61010-1 | IEC/EN 61010-1
Connecting Capacity Input Circuit UL/CSA
Flexible 12-8 AWG | Rigid 12-6 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible 12-8 AWG | Rigid 12-6 AWG
Tightening Torque UL/CSA
Input Circuit 10.5 in·lb | Output Circuit 10.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
1SVD982027
RoHS Status
Following EU Directive 2011/65/EU
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate - CP-C.1-A-RU and CP-C.1-A-RU-C Redundancy units
CB Certificate
CB_DK_111623_UL
cULus Certificate
cULus508_20170703-E174460
cURus Certificate
cURus60950_E196145-A12-UL | cURusANSI-12-12_20170825_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-C.1-A-RU Redundancy unit
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-C.1-A-RU Redundancy unit
DNV GL Certificate
DNV GL Certificate - CP-C.1-A-RU and CP-C.1-A-RU-C Redundancy units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
Redundancy architecture provides two input channels (each up to 20 A) with a single 40 A output, delivering true decoupling so a failure on one channel does not affect the other. This translates to higher system uptime and lower MTTR in mission-critical automation, reducing production losses in demanding processes. Wide input tolerance supports 10–58 V DC operation (rated 12–48 V DC), enabling use across multiple 24 V and 48 V configurations without additional power conditioning equipment, streamlining procurement and installation. Housing is IP20-rated with two-channel input/output wiring compatible with a range of flexible and rigid conductors, while DIN-rail mounting (TH35-15 or TH35-7.5) simplifies integration into standard control panels, saving space and time during commissioning. The compact dimensions (56.4 mm wide, 129.4 mm high, 136 mm deep) and 1.04 kg weight ease enclosure planning and reduce panel load. Rugged environmental specifications (-25 to +70 °C, 5000 m altitude, shock and vibration resistance) ensure reliable operation in harsh factory floors, while comprehensive certifications (CE, UKCA, UL/CSA, ABS) ease compliance audits and customer approvals.
Get a Quick Quote for a ABB 1SVR361060R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR361060R1001?
Enquire Now
FAQs
Installation is designed for DIN rail mounting on TH35 rails (TH35-15 or TH35-7.5). Attach the redundancy unit securely to a panel or DIN rail, ensure the two input circuits are connected with flexible 2.5-10 mm² conductors or rigid 2.5-16 mm², and tighten each terminal to 1.2 N·m. Plan for at least 25 mm clearance to adjacent devices for thermal and service access.
The device supports a rated input of 12–48 V DC with a broader operating range from 10–58 V DC. It features two independent input channels, each capable of up to 20 A, enabling a combined 40 A output while maintaining decoupled redundancy for CP-C.1 and CP-S.1 power supplies.
The unit provides a single 40 A output with true redundancy achieved by decoupling two CP-C.1 modules. If one channel experiences a fault, the other channel continues delivering power, ensuring uninterrupted operation of critical loads in automation systems.
Certifications include CE and UKCA declarations, UL/CSA and cULus/cURus listings, CB and ABS certificates. The unit aligns with IEC/EN 61000-6-2, 61000-6-3, UL 61010-2-201, and UL 61010-1, supporting safety, electromagnetic compatibility, and regulatory compliance in industrial environments.
Yes. It operates from -25 to +70 °C and supports up to 5000 m altitude, with robust shock and vibration resistance per IEC standards. Housing and terminals are IP20-rated, and the device meets RoHS/REACH requirements and WEEE guidelines for B2B applications, making it reliable for factory automation and harsh plant floors.
