ABB 1SVR361563R1001 Power supply - UL 508
Part Number: 1SVR361563R1001
Quick Summary
ABB 1SVR361563R1001 power supply is a 24 VDC, 5 A switch‑mode unit designed for industrial automation. Engineers often struggle with narrow input compatibility and downtime when feeding sensitive controllers in global sites. It carries UL/CSA safety certifications, CE declarations of conformity, and UKCA labeling, along with IEC 61010-1 compliance for control panels. For panel builders, the compact DIN rail footprint reduces enclosure height and inventory while its 120 W rating supports PLCs, sensors, and drives. This combination delivers reliable performance, easier compliance, and faster deployment in mechanical and electrical assemblies.
Product Information
Extended Description

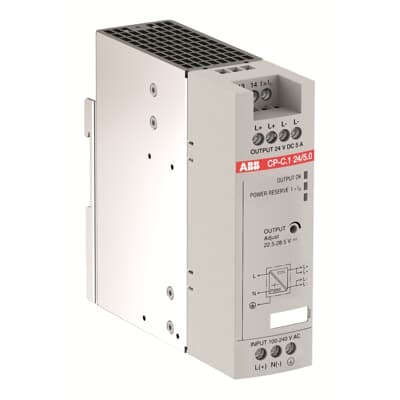

1SVR361563R1001 ABB: CP-C.1 24/5.0-L Power supply In:100-240VAC/90-300VDC Out:DC 24V/5A
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-C.1 24/5.0 Primary switch mode power supply
Instructions and Manuals
Operating and installation instructions - CP-C.1 Primary switch mode power supplies
Product Net Width
40 mm
Product Net Height
129.4 mm
Product Net Depth / Length
136 mm
Product Net Weight
0.74 kg
Package Level 1 Width
70 mm
Package Level 1 Depth / Length
168 mm
Package Level 1 Height
160 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4053546028119
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC | 90 ... 300 V DC
Input Voltage (Uin)
85 ... 264 V AC | 90 ... 300 V DC
Typical Input Current
(115 V AC) 1.1 A | (230 V AC) 0.6 A
Hold-up Time
(230 V AC) min. 50 ms
Rated Frequency (f)
50 / 60 Hz
Rated Frequency Limits
45 ... 65 Hz
Characteristic of Output
U/I characteristic curve with power reserve
Rated Output Power
120 W
Output Power
120 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
-25 °C ... +40 °C 7.5 A | -25 °C ... +60 °C 5 A
Output Current
5 A
Output Current Maximum (Iout)
7.5 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV | Output Circuit 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.5 ... 2.5 mm² | Flexible 0.5 ... 2.5 mm² | Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.5 ... 2.5 mm² | Flexible 0.5 ... 2.5 mm² | Rigid 0.5 ... 4 mm²
Tightening Torque
Auxiliary Circuit 0.5 N·m | Input Circuit 0.5 N·m | Output Circuit 0.5 N·m
Wire Stripping Length
Auxiliary Circuit 8 mm | Input Circuit 8 mm | Output Circuit 8 mm
Recommended Screw Driver
Input Circuit / Output Circuit PH1 | Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
Position 1 | 7
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | IEC/EN 63000 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 61204 | UL 508 | IEC/EN 61010-1 | UL 61010-1 | UL 61010-2-201
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 20-12 AWG | Flexible 20-12 AWG | Rigid 20-10 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible 20-12 AWG | Rigid 20-10 AWG
Tightening Torque UL/CSA
Input Circuit 4.4 in·lb | Output Circuit 4.4 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 4 Line-to-Ground 4 kV | Level 4 Line-to-Line 2 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
1SVD982010
RoHS Status
Following EU Directive 2011/65/EU
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate - CP-C.1 Power supply units
CB Certificate
CB_DK_103485_UL
cULus Certificate
cULus508_20151021-E174460
cURus Certificate
cURus60950_E196145-A10-UL | cURusANSI-12-12_20160629_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-C.1 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-C.1-C Power supply units
DNV GL Certificate
DNV GL Certificate - CP-C.1 Power supply units
SEMI Certificate
SEMI_F47_4787851718
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
