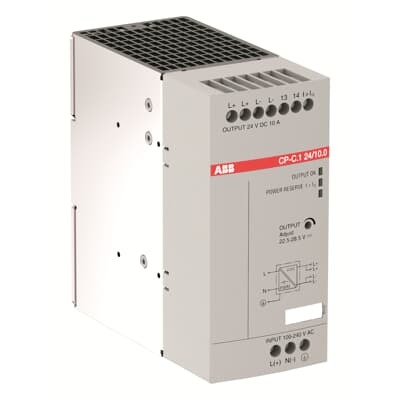

ABB 1SVR361663R1001 Power Supply - UL/CE Certified
Part Number: 1SVR361663R1001
Quick Summary
The 1SVR361663R1001 power supply delivers 24 V DC at up to 10 A to drive compact automation cabinets and remote I/O. Users frequently contend with fluctuating mains voltages and installation complexity across global sites, which can cause downtime and inconsistent performance. This ABB CP-C.1 unit carries CE, UL 508, and UL 61010-1 certifications, with UKCA documentation available, reinforcing regulatory compliance and safety. Designed for global deployment, it also supports DIN-rail mounting and a robust 240 W output, delivering reliable, scalable power for industrial control systems and machine automation.
Product Information
Extended Description
1SVR361663R1001 ABB: CP-C.1 24/10.0-L Power supply In:100-240VAC/90-300VDC Out:DC 24V/10A
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-C.1 24/10.0 Primary switch mode power supply
Instructions and Manuals
Operating and installation instructions - CP-C.1 Primary switch mode power supplies
Product Net Width
60 mm
Product Net Height
129.4 mm
Product Net Depth / Length
136 mm
Product Net Weight
1.07 kg
Package Level 1 Width
90 mm
Package Level 1 Depth / Length
168 mm
Package Level 1 Height
160 mm
Package Level 1 Gross Weight
1.21 kg
Package Level 1 EAN
4053546028126
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC | 90 ... 300 V DC
Input Voltage (Uin)
85 ... 264 V AC | 90 ... 300 V DC
Typical Input Current
(115 V AC) 2.3 A | (230 V AC) 1.2 A
Hold-up Time
(230 V AC) min. 40 ms
Rated Frequency (f)
50 / 60 Hz
Rated Frequency Limits
45 ... 65 Hz
Characteristic of Output
U/I characteristic curve with power reserve
Rated Output Power
240 W
Output Power
240 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
-25 °C ... +40 °C 15 A | -25 °C ... +60 °C 10 A
Output Current
10 A
Output Current Maximum (Iout)
15 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV | Output Circuit 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.5 ... 2.5 mm² | Flexible 0.5 ... 2.5 mm² | Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.5 ... 2.5 mm² | Flexible 0.5 ... 2.5 mm² | Rigid 0.5 ... 4 mm²
Tightening Torque
Auxiliary Circuit 0.5 N·m | Input Circuit 0.5 N·m | Output Circuit 0.5 N·m
Wire Stripping Length
Auxiliary Circuit 8 mm | Input Circuit 8 mm | Output Circuit 8 mm
Recommended Screw Driver
Input Circuit / Output Circuit PH1 | Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
Position 1 | 7
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | IEC/EN 63000 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 61204 | UL 508 | IEC/EN 61010-1 | UL 61010-1 | UL 61010-2-201
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 20-12 AWG | Flexible 20-12 AWG | Rigid 20-10 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible 20-12 AWG | Rigid 20-10 AWG
Tightening Torque UL/CSA
Input Circuit 4.4 in·lb | Output Circuit 4.4 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 4 Line-to-Ground 4 kV | Level 4 Line-to-Line 2 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
1SVD982010
RoHS Status
Following EU Directive 2011/65/EU
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate - CP-C.1 Power supply units
CB Certificate
CB_DK_106053_A2_UL
cULus Certificate
cULus508_20150522-E174460
cURus Certificate
cURus60950_E196145-A9-UL | cURusANSI-12-12_20160916_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-C.1 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-C.1-C Power supply units
DNV GL Certificate
DNV GL Certificate - CP-C.1 Power supply units
SEMI Certificate
SEMI_F47_4787681819-1
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
Wide Input Range and Hold-up Power → This switch mode power supply accepts 100-240 VAC or 90-300 VDC, delivering continuous 24 V DC at up to 10 A with a 15 A peak, ensuring stable operation during voltage sags and enabling multi-region installations. Application: global manufacturing lines and panel cabinets benefit from reduced converters in stock and fewer site-specific rewiring tasks. DIN Rail Mounting and Compact Footprint → TH35-15 or TH35-7.5 mounting options and a compact 60 mm width with a 129.4 mm height profile simplify enclosure design and maintenance. Business impact: faster installation, easier maintenance, and greater enclosure density in control cabinets. Application: automotive, packaging, and process lines that rely on standardized enclosures. Power Reserve and Output Characteristics → 24 V DC nominal output with an U/I characteristic curve and built-in power reserve supports transient loads from motors and actuators without instability. This reduces equipment resets and short-circuit disturbances in robotics and conveyor systems. Application: servo drives, I/O modules, and relays in high-demand automation tasks. Rugged Electrical and EMC Robustness → Immunity and emissions specs (EMC Class B, EN/IEC 61000 series) help maintain performance in noisy factory environments. Compliance with UL/CSA and CE DoC supports safer integration into regulated systems. Application: industrial controls and safety interlocks where electrical noise is a concern. Environmental and Mechanical Resilience → Operation from -25 to +70 °C with 5000 m altitude capability, IP20 housing, and IP20 terminals. This ensures reliability in harsh environments, while the 1.07 kg weight balances stability and installation ease. Application: machine tools, packaging lines, and outdoors-adjacent control panels where ambient conditions vary. Comprehensive Documentation and Compliance → Data sheet and installation instructions are provided, along with extensive compliance declarations (RoHS, WEEE, CMRT, REACH). Business value: reduces compliance risk, supports audits, and accelerates qualification cycles for new machines.
Get a Quick Quote for a ABB 1SVR361663R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR361663R1001?
Enquire Now
FAQs
The unit supports TH35-15 and TH35-7.5 DIN rails, with mounting guidance indicating a 60 mm width and 129.4 mm height. Ensure a minimum 25 mm spacing from other devices, tighten input and output terminals to the specified torque, and use 0.5 to 2.5 mm² wire sizes for flexible and rigid conductors. Consider cable routing to minimize EMI and allow adequate ventilation in the enclosure.
It provides 24 V DC output at up to 10 A continuous (15 A peak) with a 240 W rating. The input range spans 100-240 VAC or 90-300 V DC, and the hold-up time at 230 VAC is at least 40 ms. The unit has a power reserve on its U/I curve to support transient loads in automation equipment.
Yes. It features IP20 protection on the housing and terminals, operates from -25 to +70 °C with up to 5000 m altitude, and adheres to EMC and safety standards including CE, UL 508, and UL 61010-1, with additional UKCA and UL/CSA documentation available for qualification.
The switch mode topology offers efficient power conversion with a stable 24 V output, a built-in power reserve for peak loads, and robust EMC immunity. These attributes reduce heat and energy waste, lower the risk of voltage dips affecting controllers, and improve overall uptime in robot cells, conveyors, and programmable logic controllers.
Data sheets and installation manuals are provided as part of the product documentation package, including the CP-C.1 primary switch mode power supplies guidance. You can reference the Data Sheet and Instructions and Manuals sections to obtain the most current installation steps, safety notes, and compliance declarations for field deployment.
