ABB 1SVR361763R1001 Power supply - CE/UKCA compliant
Part Number: 1SVR361763R1001
Quick Summary
ABB 1SVR361763R1001 power supply delivers 24 V DC at 20 A for dependable factory automation systems. Engineers often contend with voltage fluctuations and load spikes that trigger faults and downtime. Certified to CE, UKCA, UL/cULus and CAN/CSA standards, this unit meets stringent safety, reliability, and regulatory expectations. Its compact DIN-rail form and broad input range reduce panel space, simplify wiring, and lower installation costs while maintaining performance across harsh industrial environments. With a rated 480 W output and an internal power reserve, it accommodates transient demands without dropping voltage. The device supports 100-240 VAC or 90-300 VDC inputs and delivers stable 24 V DC to controls, drives, and sensors, improving uptime and predictability in automation projects.
Product Information
Extended Description

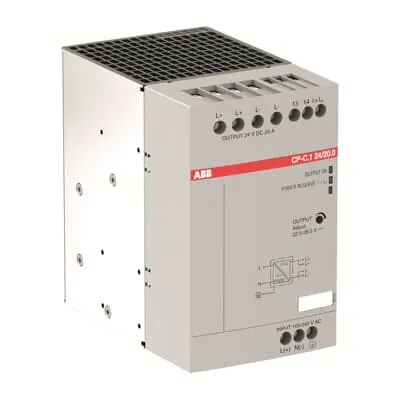

1SVR361763R1001 ABB: CP-C.1 24/20.0-L Power supply In:100-240VAC/90-300VDC Out:DC 24V/20A
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-C.1 24/20.0 Primary switch mode power supply
Instructions and Manuals
Operating and installation instructions - CP-C.1 Primary switch mode power supplies
Product Net Width
82 mm
Product Net Height
129.4 mm
Product Net Depth / Length
136 mm
Product Net Weight
1.57 kg
Package Level 1 Width
110 mm
Package Level 1 Depth / Length
168 mm
Package Level 1 Height
160 mm
Package Level 1 Gross Weight
1.7 kg
Package Level 1 EAN
4053546028133
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC | 90 ... 300 V DC
Input Voltage (Uin)
85 ... 264 V AC | 90 ... 300 V DC
Typical Input Current
(115 V AC) 4.6 A | (230 V AC) 2.3 A
Hold-up Time
(230 V AC) min. 40 ms
Rated Frequency (f)
50 / 60 Hz
Rated Frequency Limits
45 ... 65 Hz
Characteristic of Output
U/I characteristic curve with power reserve
Rated Output Power
480 W
Output Power
480 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
-25 °C ... +40 °C 26 A | -25 °C ... +60 °C 20 A
Output Current
20 A
Output Current Maximum (Iout)
26 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV | Output Circuit 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.5 ... 2.5 mm² | Flexible 0.5 ... 2.5 mm² | Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 2.5 ... 10 mm² | Flexible 2.5 ... 10 mm² | Rigid 2.5 ... 16 mm²
Tightening Torque
Auxiliary Circuit 0.5 N·m | Input Circuit 0.5 N·m | Output Circuit 1.2 N·m
Wire Stripping Length
Auxiliary Circuit 8 mm | Input Circuit 8 mm | Output Circuit 10 mm
Recommended Screw Driver
Input Circuit / Output Circuit PH1 | Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
Position 1 | 7
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | IEC/EN 63000 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | IEC/EN 61204 | UL 508 | IEC/EN 61010-1 | UL 61010-1 | UL 61010-2-201
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 20-12 AWG | Flexible 20-12 AWG | Rigid 20-10 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible 12-8 AWG | Rigid 12-6 AWG
Tightening Torque UL/CSA
Input Circuit 4.4 in·lb | Output Circuit 10.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 4 Line-to-Ground 4 kV | Level 4 Line-to-Line 2 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Resistance to Damp Heat acc. to IEC 60068-2-30
Test Db: 55°C, 2 cycles
Resistance to Shock acc. to IEC 60068-2-27
30g 3 shocks 6 ms
Resistance to Vibrations
±0.15 mm 10 ... 58 Hz | 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
1SVD982010
RoHS Status
Following EU Directive 2011/65/EU
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate - CP-C.1 Power supply units
CB Certificate
CB_DK_103862_A2_UL
cULus Certificate
cULus508_20161102-E174460
cURus Certificate
cURus60950_E196145-A11-UL | cURusANSI-12-12_20161122_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-C.1 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-C.1-C Power supply units
DNV GL Certificate
DNV GL Certificate - CP-C.1 Power supply units
SEMI Certificate
SEMI_F47_4787681819-2
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
The CP-C.1 24/20.0-L integrates a wide input range of 100-240 VAC or 90-300 VDC with a single-phase design, enabling global deployment from a single SKU. This reduces stocking complexity, speeds project startup, and lowers total cost of ownership while still meeting industrial power quality standards. In control panels for packaging lines, robots, and machine tools, owners gain predictable performance across regional grids. With a 24 V DC output and up to 480 W rated power, the unit provides a robust 20 A continuous current and a 26 A peak capability to cover brief surge loads. The U/I characteristic curve with power reserve further stabilizes voltage during transient demands, preventing brownouts in PLCs and servo drives. This translates to fewer faults and smoother operation in demanding automation tasks. Hold-up time of at least 40 ms at 230 V AC helps preserve PLC programs during brief mains interruptions, enabling safe shutdowns or rapid restart. The product's 82 mm width, 129.4 mm height, and 136 mm depth fit standard enclosures and DIN-rail installations, simplifying retrofits and new builds. Rugged construction and IP20 protection ensure reliable operation inside control cabinets. EMC immunity and safety features meet stringent industry requirements, with ESD, surge, and conducted disturbances ratings aligned to IEC 61000-4.x standards. Certifications across CE, UKCA, UL, cULus and ABS support regulatory audits and supply-chain confidence. These assurances reduce vendor risk and speed procurement for regulated environments like food & beverage, packaging, and motor control. Installation and maintenance are straightforward, thanks to clear terminal labeling, recommended screw driver sizes, and convenient wiring capacities on both input and output sides. The DIN-rail mounting options TH35-15 or TH35-7.5 plus a 0.5 to 4 mm² input and 2.5 to 16 mm² output connection range minimize commissioning time. When combined with a wide operating temperature up to 70 °C and ambient resilience, it delivers long service life in harsh industrial environments.
