ABB CR-S005VDC1R Slim Pluggable Interface Relay - UL 508
Part Number: 1SVR405501R1010
Quick Summary
CR-S005VDC1R slim interface relay provides isolated switching for compact control panels. This design minimizes wiring complexity and board footprint in space-constrained automation cabinets. Certified to UL 508 (UR), CSA and VDE standards, with cUR recognition, it underpins safe, compliant operation across markets. Coupled with 5 V DC control, SPDT output, and a 6 A/250 VAC rating, it delivers reliable performance in PLC interfaces. The compact form factor and DIN-rail snap-on mounting simplify installation, enable scalable designs, and reduce total installed cost.
Product Information
Extended Description

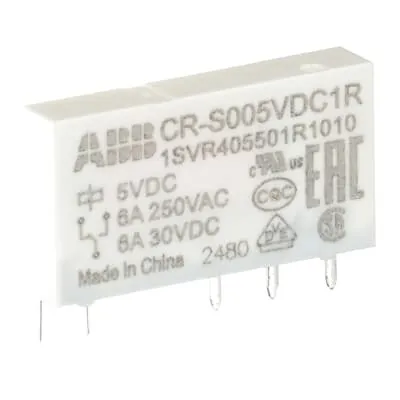

1SVR405501R1010 ABB: The CR-S005VDC1R is a slim pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. This relay operates with a 05 V DC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 6 A.This slim pluggable interface relays may be used for electrical isolation, amplification and signal matching. The CR-S relays are 6.2 mm wide and therefore allow for the switching of high currents on a small footprint. Moreover, CR-S relays are UL 94-V0 certified, improving safety by providing high levels flame retardation. Screw and spring sockets, jumper bars and markers are available as accessories.
EAN
4013614499081
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
2CDC117022D0201
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
5 mm
Product Net Height
15 mm
Product Net Depth / Length
28 mm
Product Net Weight
0.005 kg
Function
Pluggable slim interface relay CR-S
Sub-Function
Relay with standard contacts
Rated Control Supply Voltage (Us)
5 V DC
Output
1 c/o (SPDT) contact
Output Signal
250 V / 6 A
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 1 A
Degree of Protection
IP20
Overvoltage Category
III
Pollution Degree
2
Standards
CAN/CSA C22.2 No.14 | IEC/EN 61810-1 | UL 508
Ambient Air Temperature
Operation -40 ... +85 °C | Storage 0 ... +40 °C
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
1SVD981001-4400
RoHS Status
Following EU Directive 2011/65/EU
CQC Certificate
CQC Certificate - CR-S range pluggable interface relays
CSA Certificate
CSA Certificate – CR-S range pluggable interface relays
cUR Certificate
cUR_E244330
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - CR-S range pluggable interface relays and sockets with screw terminals
Package Level 1 Units
box 10 piece
Package Level 1 Width
300 mm
Package Level 1 Depth / Length
7.4 mm
Package Level 1 Height
23.7 mm
Package Level 1 Gross Weight
0.06 kg
Package Level 1 EAN
4013614486418
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712351
E-Number (Sweden)
4001380
Feature: 5 V DC control supply enables low-power operation → Business Impact: reduces control wiring energy consumption and heat in the cabinet → Application: sensors and PLC inputs in compact automation panels. Feature: 1 c/o SPDT output supports flexible switching → Business Impact: simplifies logic wiring and minimizes part count → Application: signal isolation and amplification in control circuits. Feature: 6 A at 250 VAC output rating → Business Impact: accommodates common loads with a single relay → Application: motor starters and indicator circuits in small control panels. Feature: IP20 protection and UL 94-V0 flame-retardant housing → Business Impact: enhances safety and reliability in harsh environments → Application: PCB-mounted and socket-based installations in industrial cabinets. Feature: PCB mounting or socket with DIN-rail snap-on compatibility → Business Impact: installation flexibility reduces mounting time and enables scalable designs → Application: modular control architectures and easy replacement in automation lines. Feature: Compliance to UL 508, UR, CSA, cUR, and VDE → Business Impact: global market readiness and regulatory peace of mind → Application: multi-region deployments and certified safety for electrical protection & circuit control.
