ABB CR-S005VDC1RG Pluggable Interface Relay - UL 508
Part Number: 1SVR405501R1020
Quick Summary
CR-S005VDC1RG is a slim pluggable interface relay for compact control panels, enabling direct PCB mounting or socket-based DIN rail integration. In dense panel layouts, space and reliability are critical, and bulky relays can increase wiring complexity and maintenance. This device is certified to UL 508, UR/cUR, and CAN/CSA standards, with IP20 protection and an operating range from -40 to +85 °C, supporting harsh environments. Its 5 V DC coil, SPDT output, and gold-plated contacts deliver dependable switching for sensors and actuators, while compatibility with ABB sockets simplifies installation and lifecycle costs. Designed for engineers seeking reliable, space-efficient signal conditioning and isolation, it aligns with modern automation strategies and compact I/O architectures.
Product Information
Extended Description

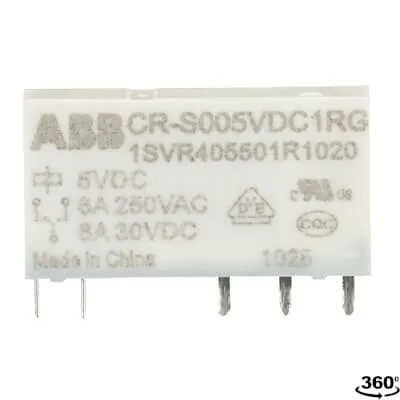

1SVR405501R1020 ABB: The CR-S005VDC1RG is a slim pluggable interface relay, with gold-plated output contacts, which is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. This relay operates with a 05 V DC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 6 A.This slim pluggable interface relays may be used for electrical isolation, amplification and signal matching. Its gold-plated contacts ensure contact reliability particularly necessary in applications where small currents and loads are to be switched. The CR-S relays are 6.2 mm wide and therefore allow for the switching of high currents on a small footprint. Moreover, CR-S relays are UL 94-V0 certified, improving safety by providing high levels flame retardation. Screw and spring sockets, jumper bars and markers are available as accessories.
EAN
4013614499098
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
2CDC117022D0201
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
5 mm
Product Net Height
15 mm
Product Net Depth / Length
28 mm
Product Net Weight
0.005 kg
Function
Pluggable slim interface relay CR-S
Sub-Function
Relay with gold-plated contacts
Rated Control Supply Voltage (Us)
5 V DC
Output
1 c/o (SPDT) contact
Output Signal
250 V / 6 A
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 1 A
Degree of Protection
IP20
Overvoltage Category
III
Pollution Degree
2
Standards
CAN/CSA C22.2 No.14 | IEC/EN 61810-1 | UL 508
Ambient Air Temperature
Operation -40 ... +85 °C | Storage 0 ... +40 °C
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
1SVD981001-4400
RoHS Status
Following EU Directive 2011/65/EU
CQC Certificate
CQC Certificate - CR-S range pluggable interface relays
CSA Certificate
CSA Certificate – CR-S range pluggable interface relays
cUR Certificate
cUR_E244330
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - CR-S range pluggable interface relays and sockets with screw terminals
Package Level 1 Units
box 10 piece
Package Level 1 Width
300 mm
Package Level 1 Depth / Length
7.4 mm
Package Level 1 Height
23.7 mm
Package Level 1 Gross Weight
0.06 kg
Package Level 1 EAN
4013614486425
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712363
E-Number (Sweden)
4001381
Feature: Slim 6.2 mm wide CR-S relays enable high I/O density in control panels. Benefit: frees valuable panel space and allows higher load concentration without enlarging the enclosure. Application: ideal for compact PLC I/O modules and mixed-signal interfaces where every millimeter counts. Feature: Gold-plated contacts for enhanced reliability. Benefit: reduces contact wear during frequent switching of small loads, improving uptime. Application: sensor interfaces and signal conditioning circuits in automation cabinets. Feature: 5 V DC control coil. Benefit: easy integration with low-voltage logic and microcontroller-based controllers, lowering drive circuitry complexity. Application: PLC logic, distributed I/O, and intelligent sensors. Feature: SPDT 1 c/o output and 250 V / 6 A rating. Benefit: flexible logic options and robust handling of common actuators. Application: isolation and amplification tasks in control systems. Feature: IP20 protection and a compact 5 × 15 × 28 mm footprint. Benefit: rugged, space-efficient reliability in industrial enclosures. Application: panel-mounted relay blocks and modular I/O racks. Feature: DIN rail snap-on compatibility with ABB sockets. Benefit: rapid installation, easy maintenance, and economical replacement. Application: modular automation architectures and serviceable control panels. Feature: Wide operating temperature (-40 to +85 °C). Benefit: dependable performance in demanding environments. Application: outdoor or temperature-variant industrial sites and manufacturing lines.
