ABB 1SVR405501R5010 CR-S060VDC1R - UL 508 Certified
Part Number: 1SVR405501R5010
Quick Summary

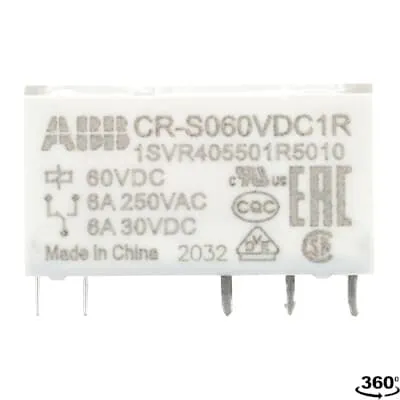

CR-S060VDC1R slim pluggable interface relay provides isolated control signals for compact control panels and machine interfaces. Engineers often wrestle with space constraints and wiring complexity in modern automation cabinets, so a 5 mm wide relay that can mount directly on a PCB or snap into ABB sockets helps streamline layouts. The device carries critical safety and compliance support, including UL 508, CSA/UR, and VDE certifications, along with IP20 protection for safe operation in typical factory environments. This combination of a 60 V DC control supply and a 1 c/o SPDT output delivers reliable switching for signal conditioning, isolation, and interface logic, while maintaining a small footprint. Together with compatible sockets and DIN-rail mounting, it reduces panel space requirements and simplifies maintenance, boosting overall equipment availability.
Product Information
Extended Description
1SVR405501R5010 ABB: The CR-S060VDC1R is a slim pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. This relay operates with a 60 V DC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 6 A.This slim pluggable interface relays may be used for electrical isolation, amplification and signal matching. The CR-S relays are 6.2 mm wide and therefore allow for the switching of high currents on a small footprint. Moreover, CR-S relays are UL 94-V0 certified, improving safety by providing high levels flame retardation. Screw and spring sockets, jumper bars and markers are available as accessories.
EAN
4013614499166
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
2CDC117022D0201
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
5 mm
Product Net Height
15 mm
Product Net Depth / Length
28 mm
Product Net Weight
0.005 kg
Function
Pluggable slim interface relay CR-S
Sub-Function
Relay with standard contacts
Rated Control Supply Voltage (Us)
60 V DC
Output
1 c/o (SPDT) contact
Output Signal
250 V / 6 A
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 1 A
Degree of Protection
IP20
Overvoltage Category
III
Pollution Degree
2
Standards
CAN/CSA C22.2 No.14 | IEC/EN 61810-1 | UL 508
Ambient Air Temperature
Operation -40 ... +85 °C | Storage 0 ... +40 °C
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
1SVD981001-4400
RoHS Status
Following EU Directive 2011/65/EU
CQC Certificate
CQC Certificate - CR-S range pluggable interface relays
CSA Certificate
CSA Certificate – CR-S range pluggable interface relays
cUR Certificate
cUR_E244330
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - CR-S range pluggable interface relays and sockets with screw terminals
Package Level 1 Units
box 10 piece
Package Level 1 Width
300 mm
Package Level 1 Depth / Length
7.4 mm
Package Level 1 Height
23.7 mm
Package Level 1 Gross Weight
0.06 kg
Package Level 1 EAN
4013614486494
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712358
E-Number (Sweden)
4001388
Feature: 5 mm width and 15 mm height enable higher channel density and more compact PCBs. This densifies control layouts, reduces panel footprint, and lowers wiring length and assembly time in high-channel-count applications. Application: dense I/O blocks in automation cabinets, robotics interfaces, and machine safety circuits. Feature: 60 V DC control supply with a 1 c/o SPDT contact rated to 250 VAC at 6 A. Benefit: compatible with standard control logic and common loads, delivering reliable switching without extra interposing relays. Application: signal isolation, amplification, and simple logic interfacing in PLC I/O circuits. Feature: UL 94-V0 flame retardant housing and IP20 protection. Benefit: enhanced safety and dependable performance in typical enclosures, with protection against contact hazards. Application: safety-critical circuits in panel boards, controllers, and sensing modules. Feature: versatile mounting with direct PCB setup or ABB socket the option for seamless DIN Rail snap-on installation. Benefit: simplifies installation, reduces spare parts, and enables rapid field replacements. Application: modular panels and control racks requiring quick deployment. Feature: wide operating temperature range (-40 to +85 °C) and rugged environmental tolerance. Benefit: broad deployment across harsh factory floors and outdoor panels, reducing cooling needs. Application: machine tools, process controls, and safety circuits exposed to thermal stress.
Get a Quick Quote for a ABB 1SVR405501R5010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405501R5010?
Enquire Now
FAQs
Begin by selecting a compatible ABB socket and ensure the socket is rated for the relay’s SPDT configuration. Insert the CR-S060VDC1R into the socket, then snap the combined unit onto the DIN rail using the rail-mount option. Confirm electrical connections, tighten connectors to avoid micro-movement, and verify the -40 to +85 °C operating range for your environment. This method simplifies replacement and reduces wiring complexity in dense panels.
The relay operates with a 60 V DC control supply and provides a 1 c/o SPDT contact rated for up to 250 VAC at 6 A. Operational currents include AC-12 at 230 V up to 6 A, DC-12 at 24 V up to 6 A, and DC-13 at 24 V up to 1 A. These ratings support typical industrial loads while maintaining isolation and safe switching performance.
Yes. The CR-S060VDC1R range carries UL 508 and UR/cUR certifications, along with CSA and VDE certificates, and CQC in some regions. It also features IP20 protection. These certifications confirm compatibility with global safety standards, enabling deployment in diverse manufacturing environments and helping with regulatory compliance in panel builds.
The relay supports isolation and signal conditioning essential for safety circuits, with a robust 60 V DC control input and SPDT output. Its IP20 rating and flame-retardant housing provide additional protection. For safety-critical applications, pair it with appropriate fusing, interlocks, and panel design practices to ensure reliable, compliant performance across industrial environments.
The slim footprint and socket compatibility reduce replacement time and spare parts inventory, while the DIN-rail snap-on capability speeds field service. The 5 mm width facilitates higher channel density, lowering panel size and wiring complexity. The robust certifications and wide operating temperature range also contribute to lower maintenance costs and longer lifecycle in demanding industrial settings.
