ABB 1SVR405510R3070 Pluggable optocoupler - CE certified
Part Number: 1SVR405510R3070
Quick Summary
The ABB 1SVR405510R3070 pluggable optocoupler provides isolated switching for control panels. Engineers often struggle with crowded panels and wiring complexity, especially when adding reliable isolation for AC loads. It carries CE conformity, UR/UL 508 recognition, and IP00 protection, helping you meet European and North American safety standards. The 24 V DC input and compact 15 mm width enable dense panel layouts, while its plug-in socket compatibility reduces maintenance downtime. This device aligns with IEC/EN 61000-6-2 and 61000-6-3, ensuring EMC resilience in automated machinery. For procurement teams, the 10 piece MOQ and RoHS compliance streamline sourcing and EMI compliance in new builds.
Product Information
Extended Description

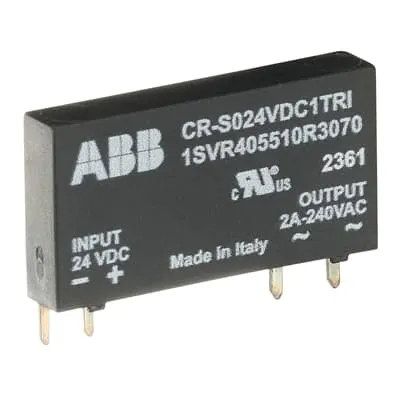

1SVR405510R3070 ABB: The CR-S024VDC1TRI slim pluggable optcoupler with Triac output is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's CR-S sockets. This relay operates with a 240 V AC rated control supply voltage and has a maximum switching voltage of 275 V AC and maximum switching current of 2 A. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. CR-S screw and spring sockets, separator, jumper bars and marker are available as accessories.
EAN
4013614486630
Minimum Order Quantity
10 piece
Customs Tariff Number
85369095
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
15 mm
Product Net Height
5 mm
Product Net Depth / Length
28 mm
Product Net Weight
0.004 kg
Function
Pluggable slim optocoupler CR-S
Rated Control Supply Voltage (Us)
24 V DC
Output
TRIAC
Output Signal
240VAC / 2A
Degree of Protection
IP00
Standards
IEC/EN 61000-6-2 | IEC/EN 61000-6-3
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
1SVD981001-4400
RoHS Status
Following EU Directive 2011/65/EU
cUR Certificate
cUR_E244330
Declaration of Conformity - CE
EU Declaration of Conformity - CR-P, CR-S range optocouplers
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
23.7 mm
Package Level 1 Depth / Length
7.4 mm
Package Level 1 Height
300 mm
Package Level 1 Gross Weight
0.05 kg
Package Level 1 EAN
4013614509216
ETIM 7
EC001504 - Optocoupler
ETIM 8
EC001504 - Optocoupler
ETIM 9
EC001504 - Optocoupler
eClass
V11.0 : 27371604
UNSPSC
32111705
Slim pluggable design saves panel space and simplifies field replacement by enabling plug-in mounting on PCBs or CR-S sockets. This reduces wiring complexity and accelerates service in tight control enclosures, improving overall OPEX. The compact footprint supports dense panel layouts while maintaining reliable isolation for AC loads in automation systems. The TRIAC output delivers 240 VAC at up to 2 A, allowing direct interfacing with common automation loads without additional relays, cutting BOM cost and simplifying wiring diagrams. A 24 V DC control input is compatible with standard PLCs and ABB control circuits, enabling straightforward retrofits and scalable automation architectures. Compliance with IP00, IEC 61000-6-2/3, and RoHS standards minimizes regulatory risk and ensures predictable performance in harsh factory environments. Accessory sockets, separators, jumpers, and markers enhance installation ergonomics and lifecycle management, while the compact dimensions (15 mm width, 28 mm depth, 5 mm height) support modular panel design.
