ABB 1SVR405521R1100 Socket - CE/UKCA/CSA
Part Number: 1SVR405521R1100
Quick Summary
ABB 1SVR405521R1100 is a socket for CR-S interface relays used in control panels. Operators often struggle with wiring errors and space constraints in compact cabinets. The part carries CE and UKCA declarations, CSA and UL listings, and a VDE certificate, with IP20 protection and a 6-24 VDC control supply alongside a 250 V AC rated output. In practice, this socket supports scalable panel architectures and easy replacement of worn relays, while its screw-terminal design simplifies field wiring. This combination of reliability, standards compliance, and space efficiency translates to faster installations and lower lifecycle costs for industrial automation projects.
Product Information
Extended Description

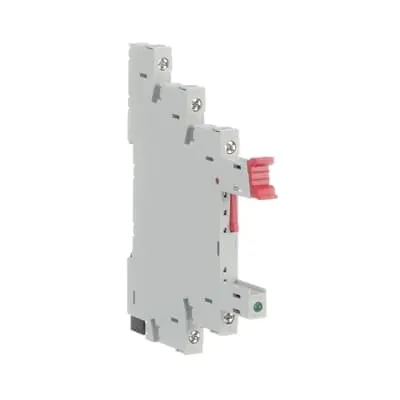

1SVR405521R1100 ABB: CR-S006/024VDC1SS Socket 1c/o, A1-A2=6-24VDC, 250VAC screw terminals
EAN
4013614499180
Minimum Order Quantity
10 piece
Customs Tariff Number
85369010
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-S Range sockets
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
6.3 mm
Product Net Height
76.4 mm
Product Net Depth / Length
88.5 mm
Product Net Weight
0.025 kg
Function
Accessory for interface relays CR-S
Sub-Function
Socket
Rated Control Supply Voltage (Us)
6 ... 24 V DC
Rated Operational Voltage
250 V AC
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP20 | Terminals IP20
Connecting Capacity
Flexible 2.5 mm² | Rigid 2.5 mm²
Tightening Torque
0.5 N·m
Wire Stripping Length
7 mm
Mounting Position
1
Mounting on DIN Rail
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Connecting Capacity UL/CSA
Flexible 14 AWG | Rigid 14 AWG
Tightening Torque UL/CSA
4.42 in·lb
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 2x 20 ... 18 AWG | Rigid 2x 20-16 AWG | Stranded 2 x 20-16 AWG
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-S Pluggable interface-relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-S Pluggable interface-relays and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-S Pluggable interface-relays and accessories
VDE Certificate
VDE Certificate - CR-S range pluggable interface relays and sockets with screw terminals
Package Level 1 Units
box 10 piece
Package Level 1 Width
93 mm
Package Level 1 Depth / Length
66 mm
Package Level 1 Height
81 mm
Package Level 1 Gross Weight
0.26 kg
Package Level 1 EAN
4013614486319
Object Classification Code
K
ETIM 7
EC001456 - Relay socket
ETIM 8
EC001456 - Relay socket
ETIM 9
EC001456 - Relay socket
eClass
V11.0 : 27371603
UNSPSC
39122335
E-Number (Finland)
2712360
E-Number (Sweden)
4001390
Feature: DIN rail mounting on TH35-7.5 provides a secure, space-efficient footprint for control panels. Business Impact: Faster installation, consistent rail alignment, and easier servicing reduce commissioning time and maintenance overhead. Application: Ideal for automation cabinets and machine controls that rely on compact, reliable CR-S socket integration along a standard 35 mm DIN rail. Feature: Rated control supply voltage of 6 to 24 V DC supports wide logic levels. Business Impact: Flexible power topology simplifies wiring schemes and reduces parts diversity in the control loop. Application: Suitable for distributed I/O architectures in packaging, material handling, and process lines where a single supply variant can cover multiple relays. Feature: Screw terminals with 2.5 mm² capacity deliver robust, field-friendly connections. Business Impact: Lower risk of loose contacts and signal loss, improving reliability in high-vibration environments. Application: Field wiring to CR-S system components in harsh industrial settings, with straightforward torque requirements (0.5 N·m) to ensure terminal integrity. Feature: Rated operational voltage 250 V AC and AC-12 current rating (6 A) enable safe control of small power circuits. Business Impact: Clear specification for safety margins and compliance, reducing overrating and unnecessary part counts. Application: Control panels for motors, relays, and sensors within industrial machinery, where predictable current handling is essential. Feature: IP20 protection and durable materials align with European and UL/CSA expectations. Business Impact: Enhanced enclosure safety and compatibility with RoHS and CMRT standards, supporting compliance programs. Application: Equipment destined for factory floors and control rooms requiring robust ingress protection and material transparency in supply chains. Feature: Full certification suite including CE, UKCA, CSA, UL, and VDE listings ensures regulatory readiness. Business Impact: Lower risk in audits, smoother market approvals, and easier supplier qualification. Application: Product families in automation and control electronics where regulatory compliance accelerates time-to-market.
Get a Quick Quote for a ABB 1SVR405521R1100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405521R1100?
Enquire Now
FAQs
The ABB 1SVR405521R1100 is designed specifically for CR-S interface-relay modules and sockets. It provides a plug-on, screw-terminal socket compatible with the CR-S range, including the 1c/o configuration. For installers, compatibility translates to straightforward replacement and consistent wiring practices in standard industrial panels.
Key ratings include a 6 to 24 V DC control supply, a 250 V AC rated output, and a rated operational current of 6 A at AC-12 (230 V). The screw terminals support 2.5 mm² conductors, with a tightening torque of 0.5 N·m, providing reliable, code-compliant connections in typical control circuits.
Yes. The socket is designed for DIN rail mounting on TH35-7.5 (35 x 7.5 mm) rails per IEC 60715. This facilitates quick, secure installation in standard control panels and supports scalable layouts as relay networks grow.
The socket carries CE, UKCA, CSA, UL, and VDE certifications, along with RoHS compliance. These certifications streamline regulatory approvals, support international market access, and reduce vendor risk by demonstrating adherence to recognized safety and product standards.
The plug-in CR-S socket design enables fast relay replacement, minimizing downtime during maintenance. Space-efficient DIN rail mounting reduces panel footprint, while screw-terminal reliability lowers field repair needs. Collectively, these factors contribute to shorter downtime, easier upgrades, and lower total cost of ownership in automation projects.
