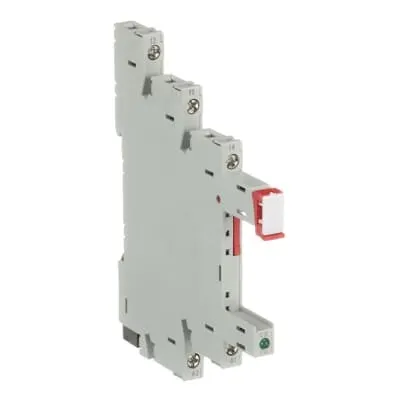

ABB 1SVR405521R3100 Socket - IP20
Part Number: 1SVR405521R3100
Quick Summary
ABB 1SVR405521R3100 Socket is a CR-S interface-relay socket for industrial control panels. It provides a robust, plug-and-play connection for ABB CR-S relays, simplifying panel wiring and maintenance. Certifications UL/CSA, CE, UKCA, and VDE confirm safety and regulatory compliance in global deployments. The design supports 12–24 V control, 250 V operation, and DIN-rail mounting, delivering reliable performance in demanding environments while reducing wiring complexity and total cost of ownership for automation projects.
Product Information
Extended Description
1SVR405521R3100 ABB: CR-S012/024VADC1SS Socket 1c/o, A1-A2=12-24VAC/DC, 250VAC screw terminals
Lead Time
21 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USSVCEXPU
Warranty Return
Product under warranty must be returned
EAN
4013614499203
Minimum Order Quantity
10 piece
Customs Tariff Number
85369010
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-S Range sockets
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
6.3 mm
Product Net Height
76.4 mm
Product Net Depth / Length
88.5 mm
Product Net Weight
0.025 kg
Function
Accessory for interface relays CR-S
Sub-Function
Socket
Rated Control Supply Voltage (Us)
12 ... 24 V AC/DC
Rated Operational Voltage
250 V AC
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP20 | Terminals IP20
Connecting Capacity
Flexible 2.5 mm² | Rigid 2.5 mm²
Tightening Torque
0.5 N·m
Wire Stripping Length
7 mm
Mounting Position
1
Mounting on DIN Rail
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Connecting Capacity UL/CSA
Flexible 14 AWG | Rigid 14 AWG
Tightening Torque UL/CSA
4.42 in·lb
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 2x 20 ... 18 AWG | Rigid 2x 20-16 AWG | Stranded 2 x 20-16 AWG
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-S Pluggable interface-relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-S Pluggable interface-relays and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-S Pluggable interface-relays and accessories
VDE Certificate
VDE Certificate - CR-S range pluggable interface relays and sockets with screw terminals
Package Level 1 Units
box 10 piece
Package Level 1 Width
93 mm
Package Level 1 Depth / Length
66 mm
Package Level 1 Height
81 mm
Package Level 1 Gross Weight
0.26 kg
Package Level 1 EAN
4013614486333
Object Classification Code
K
ETIM 7
EC001456 - Relay socket
ETIM 8
EC001456 - Relay socket
ETIM 9
EC001456 - Relay socket
eClass
V11.0 : 27371603
UNSPSC
39122335
E-Number (Finland)
2712362
E-Number (Sweden)
4001392
